Applications

Screw-to-connect couplings for road machines applications

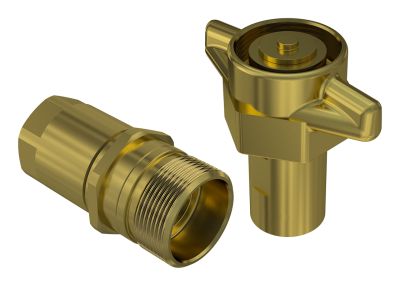

Screw-on flat face brass couplings suitable to vehicles and road machines applications. A wing-shaped sleeve helps to connect and disconnect by hand. Interchangeable for US market.


Items
Size (mm)  PartNumber Thread HEX1 D1 L1
 20 FB 12/12 NPT F5 NPTF 1/2" FEMALE 30 90 81
 20 FB 12/34 NPT F5 NPTF 3/4" FEMALE 30 90 81
 25 FB 16/1 NPT F 5 NPTF 1" FEMALE 36 75 90.8
 31,5 FB 20/114NPT F5 NPTF 1-1/4" FEMALE 45 127 95
 37,5 FB 24/112NPT F5 NPTF 1-1/2" FEMALE 50 150 110.2
Size (mm)  PartNumber Thread HEX1 D1 L1
 20 FB 12/12 NPT M5 NPTF 1/2" FEMALE 34 45 81.3
 20 FB 12/34 NPT M5 NPTF 3/4" FEMALE 34 45 82
 25 FB 16/1 NPT M 5 NPTF 1" FEMALE 36 75 90.8
 31,5 FB 20/114NPT M5 NPTF 1-1/4" FEMALE 45 127 95
 37,5 FB 24/112NPT M5 NPTF 1-1/2" FEMALE 55 72 110

Download Fb Catalogue
