Applications

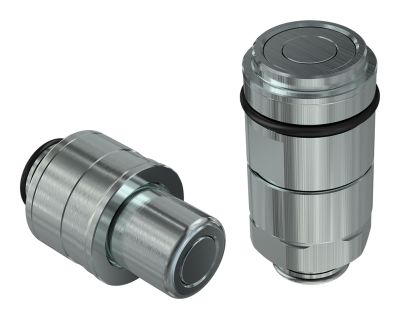

Flat face cartridge coupling, stainless steel

Self-aligning flat face couplings for multiconnections. Misalignments up to ± 0.5 mm and ± 1° (angular) are automatically compensated during the connection. Stainless steel components (AISI 316) with Viton seals. Faster proprietary profile.


Items
Size (mm)  PartNumber Thread D1 L1
 6,3 FFC14 F 2V   19 44.8
 10 FFC38 F 2V   23.9 49.3
 12,5 FFC12 F 2V   31.3 70.8
Size (mm)  PartNumber Thread D1 D3 L1
 6,3 FFC14 M 2V   19.6 12.1 36
 10 FFC38 M 2V   24.5 16.1 40.5
 12,5 FFC12 M 2V   32.5 19.7 56
