Applications

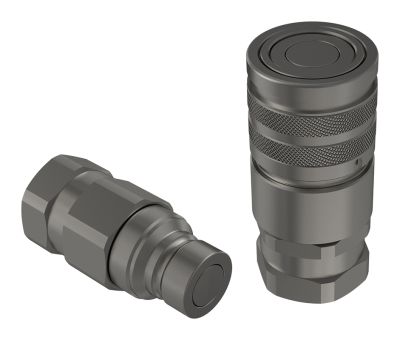

Flat face couplings, ISO 16028 interchange, 35 MPa series

Flat-Face couplings with real maximum working pressure of 35 MPa and Zinc-Nickel plating. Flat valve shut-off system contributes to prevent contamination and spillage. ISO 16028 interchange. Size 1/8" has surface treatment in Mate 500 (CrIII) and it is not ISO interchangeable.


Items
Size (mm)  PartNumber Thread HEX1 HEX2 HEX3 D1 D3 L1
 3,2 FFH02 14GAS F BSPP 1/4" FEMALE 18     20   51.3
 3,2 FFH02 18GAS F BSPP 1/8" FEMALE 18     20   46.1
 3,2 FFH02-13/14S F 7/16"-20 UNF MALE JIC 18     20   60.1
 6,3 FFH04 14GAS F BSPP 1/4" FEMALE 24     27   58.9
 6,3 FFH04 14NPT F NPTF 1/4" FEMALE 24     27   58.9
 6,3 FFH04 38SAE F 9/16"-18 UNF FEMALE ORB 24     27   59.6
 6,3 FFH04-0/1615 F M16x1,5 FEMALE ORB 24     27   61.1
 6,3 FFH04-12/38S F 11/16"-16 UN MALE BULKHEAD ORFS 24 25   27   91.4
 6,3 FFH04-12/38SFD   24     27   91.4
 6,3 FFH04-13/38S F 9/16"-18 UNF MALE JIC 24     27   71.5
 6,3 FFH04-14/38S F 9/16"-18 UNF MALE BULKHEAD JIC 24 22   27   89.9
 6,3 FFH04-2/1415 F M14x1,5 MALE 8L 24     27   67.4
 6,3 FFH04-2/1615 F M16x1,5 MALE 10L 24     27   68.4
 6,3 FFH04-3/1615 F M16x1.5 MALE 8S 24     27   69.4
 6,3 FFH04-5/1615 F M16x1,5 MALE BULKHEAD 10L 24     27   92.4
 6,3 FFH04-6/1615 F M16x1.5 MALE BULKHEAD 8S 24 22   27   75.5
 6,3 FFH04-7/1615 F M16x1,5 MALE BULKHEAD SHORT 10L 24 22   27   82.4
 6,3 FFH04 14JPT F RC 1/4 FEMALE (JPT) 24     27   58.9
 6,3 FFH04 14SAE F 3/4"-16 UNF MALE ORFS 24     27   59
 10 FFH06 12GAS F BSPP 1/2" FEMALE 27     30   79.4
 10 FFH06 38GAS F BSPP 3/8" FEMALE 27     30   75
 10 FFH06-2/2215 F M22x1,5 MALE 15L 27     30   81.9
 10 FFH06 38NPT F NPTF 3/8" FEMALE 27     30   75
 10 FFH06 12NPT F NPTF 1/2" FEMALE 27     30   79.4
 10 FFH06 12SAE F 3/4"-16 UNF FEMALE ORB 27     30   76.9
 10 FFH06 38GAS FV BSPP 3/8" FEMALE 27     30   97.9
 10 FFH06-1/12S F 3/4"-16 UNF MALE 27     30   80.7
 10 FFH06-1/38S F 9/16"-18 UNF MALE 27     30   79.9
 10 FFH06-12/12S F 13/16"-16 UN MALE BULKHEAD ORFS 27 27   30   106
 10 FFH06-14/12S F 3/4"-16 UN MALE BULKHEAD JIC 27 27   30   106.5
 10 FFH06-2/1415 F M14x1,5 MALE 8L 27     30   79.9
 10 FFH06-2/1615 F M16x1,5 MALE 10L 27     30   80.9
 10 FFH06-2/1815 F M18x1,5 MALE 12L 27     30   80.9
 10 FFH06-3/2015 F M20x1.5 MALE 12S 27     30   80.9
 10 FFH06-5/1815 F M18x1,5 MALE BULKHEAD 12L 27 24   30   105.9
 10 FFH06-5/2215 F M22x1,5 MALE BULKHEAD 15L 27 27   30   107.9
 10 FFH06-6/2015 F M20x1.5 MALE BULKHEAD 12S 27 27   30   107.9
 10 FFH06-7/1615 F M16x1,5 MALE BULKHEAD SHORT 10L 27 22   30   94.9
 10 FFH06-7/1815 F M18x1.5 MALE BULKHEAD SHORT 12L 27 24   30   95.9
 10 FFH06-7/2215 F M22x1.5 MALE BULKHEAD SHORT 15L 27 27   30   97.9
 10 FFH06 12JPT F RC 1/2 FEMALE (JPT) 27 27   30   78.4
 10 FFH06 38GAS FB BSPP 3/8" FEMALE 27 27   30   75
 10 FFH06 38JPT F RC 3/8 FEMALE (JPT) 27 27   30   74.9
 12,5 FFH08 12GAS F BSPP 1/2" FEMALE 34     38   81.3
 12,5 FFH08 34GAS F BSPP 3/4" FEMALE 34     38   84.8
 12,5 FFH08 12NPT F NPTF 1/2" FEMALE 34     38   81.3
 12,5 FFH08 34SAE F 1-1/16"-12 UN FEMALE ORB 34     38   86.8
 12,5 FFH08 58SAE F 7/8"-14 UNF FEMALE ORB 34     38   81.3
 12,5 FFH08 12GAS FV BSPP 1/2" FEMALE 34     38   81.3
 12,5 FFH08 12SAE F 3/4"-16 UNF FEMALE ORB 34     38   81.3
 12,5 FFH08 34NPT F NPTF 3/4" FEMALE 34     38   81.3
 12,5 FFH08 34SAE FA   34     38   86.8
 12,5 FFH08-1/12S F 3/4"-16 UNF MALE 34     38   82.4
 12,5 FFH08-12/12S F 13/16"-16 UN MALE BULKHEAD ORFS 34 27   38   107.8
 12,5 FFH08-12/1SFD   38     38   123.3
 12,5 FFH08-12/34S F 1-3/16"-12 UN MALE BULKHEAD ORFS 36 38   38   112.8
 12,5 FFH08-12/58S F 1"-14 UNS MALE BULKHEAD ORFS 34 34   38   111.8
 12,5 FFH08-13/58S F 7/8"-14 UNF MALE JIC 34     38   90.6
 12,5 FFH08-14/12S F 3/4"-16 UN MALE BULKHEAD JIC 34 27   38   107.9
 12,5 FFH08-14/12S FS   34     38   107.9
 12,5 FFH08-14/34S F 1-1/16"-12 UN MALE BULKHEAD JIC 34 34   38   115.7
 12,5 FFH08-14/34S FA   34 34   38   115.7
 12,5 FFH08-14/34S FS   34     38   115.7
 12,5 FFH08-14/58S F 7/8"-14 UNF MALE BULKHEAD JIC 34 27   38   111.4
 12,5 FFH08-14/58S FA   34 27   38   111.4
 12,5 FFH08-14/58S FS   34     38   111.4
 12,5 FFH08-2/1815 F M18x1,5 MALE 12L 34     38   82.3
 12,5 FFH08-2/2215 F M22x1,5 MALE 15L 34     38   83.3
 12,5 FFH08-3/2415 F M24x1,5 MALE 16S 34     38   85.3
 12,5 FFH08-5/1815 F M18x1,5 MALE BULKHEAD 12L 34 24   38   107.3
 12,5 FFH08-5/2215 F M22x1,5 MALE BULKHEAD 15L 34 27   38   109.3
 12,5 FFH08-7/2215 F M22x1.5 MALE BULKHEAD SHORT 15L 34 27   38   99.3
 12,5 FFH08 12JPT F RC 1/2 FEMALE (JPT) 34     38 37 81.3
 12,5 FFH08 12NPT FT NPTF 1/2" FEMALE 34     38   81.3
 12,5 FFH08-2/2615 F M26x1,5 MALE 18L 34     38 37 83.3
 16 FFH10 34GAS F BSPP 3/4" FEMALE 38     42   92.1
 16 FFH10 34NPT F NPTF 3/4" FEMALE 38     42   92.1
 16 FFH10 34SAE F 1-1/16"-12 UN FEMALE ORB 38     42   95.1
 16 FFH10 58GAS F BSPP 5/8" FEMALE 38     42   91.1
 16 FFH10-1/34S F 1-1/16"-12 UN MALE 38     42   95.4
 16 FFH10-1/34S FA   38     42   95.4
 16 FFH10-1/58S F 7/8"-14 UNF MALE 38     42   93
 16 FFH10-14/34S FA   38   34 42   124.7
 16 FFH10-2/2615 F M26x1,5 MALE 18L 38     42   92.3
 16 FFH10-3/2415 F M24x1,5 MALE 16S 38     42   94.3
 16 FFH10-5/2615 F M26x1,5 MALE BULKHEAD 18L 38 36   42   120.3
 16 FFH10-6/2415 F M24x1.5 MALE BULKHEAD 16S 38 30   42   120.3
 20 FFH12 34GAS F BSPP 3/4" FEMALE 42     48   100.3
 20 FFH12 1GAS F BSPP 1" FEMALE 42     48   104.3
 20 FFH12 1NPT F NPTF 1" FEMALE 42     48   104.3
 20 FFH12 1SAE F 1-5/16"-12 UN FEMALE ORB 42     48   104.3
 20 FFH12 34NPT F NPTF 3/4" FEMALE 42     48   100.3
 20 FFH12 34SAE F 1-1/16"-12 UN FEMALE ORB 42     48   104.3
 20 FFH12-0/3320 F M33x2 FEMALE ORB 42     48   102.6
 20 FFH12-1/2720 F M27x2 MALE 42     48   113.1
 20 FFH12-1/2720 FC   42     48   113.1
 20 FFH12-1/34S F 1-1/16"-12 UN MALE 42     48   107.6
 20 FFH12-12/1S F 1-7/16"-12 UN MALE BULKHEAD ORFS 42 45   48   133.9
 20 FFH12-12/34S F 1-3/16"-12 UN MALE BULKHEAD ORFS 42 38   48   133.4
 20 FFH12-13/34S FS   42     48   106.8
 20 FFH12-14/34S F 1-1/16"-12 UN MALE BULKHEAD JIC 42 34   48   136.3
 20 FFH12-2/3020 F M30x2 MALE 22L 42     48   105.9
 20 FFH12-3/3020 F M30x2 MALE 20S 42     48   108.4
 20 FFH12-5/3020 F M30x2 MALE BULKHEAD 22L 42 41   48   133.9
 20 FFH12-6/3020 F M30x2 MALE BULKHEAD 20S 42 41   48   136.1
 20 FFH12-6/3620 F M36x2 MALE BULKHEAD 25S 42 46   48   138.9
 20 FFH12 34JPT F RC 3/4 FEMALE (JPT) 42     48   100.3
 25 FFH16 1GAS F BSPP 1" FEMALE 50     55   100.5
 25 FFH16 114GAS F BSPP 1-1/4" FEMALE 50     55   103
 25 FFH16 112GAS F BSPP 1-1/2" FEMALE 55     55   105.3
 25 FFH16 114NPT F NPTF 1-1/4" FEMALE 50     55   100.5
 25 FFH16 1NPT F NPTF 1" FEMALE 50     55   100.5
 25 FFH16 1SAE F 1-5/16"-12 UN FEMALE ORB 50     55   100.5
 25 FFH16-0/3320 F M33x2 FEMALE ORB 50     55   103
 25 FFH16-1/3020 F M30x2 MALE 50     55   121.5
 25 FFH16-1/3020 FC   50     55   121.5
 25 FFH16-3/3620 F M36x2 MALE 25S 50     55   112
 25 FFH16-6/3620 F M36x2 MALE BULKHEAD 25S 50 46   55   141
 31,5 FFH20 114GAS F BSPP 1-1/4" FEMALE 60     63 64 103.4
Size (mm)  PartNumber Thread HEX1 HEX2 D1 D3 L1
 3,2 FFH02 18GAS M BSPP 1/8" FEMALE 16   18 11.6 44
 3,2 FFH02-1/38S M 9/16"-18 UNF MALE 17   19 11.6 54
 3,2 FFH02-21/14G M 1/4" BSPP MALE 19   21 11.6 51
 6,3 FFH04 14GAS M BSPP 1/4" FEMALE 24   26 16.1 49
 6,3 FFH04 14NPT M NPTF 1/4" FEMALE 24   26 16.1 49
 6,3 FFH04 38SAE M 9/16"-18 UNF FEMALE ORB 24   26 16.1 52
 6,3 FFH04-1/14G M 1/4" BSPP MALE 24   26 16.1 52
 6,3 FFH04-12/38S M 11/16"-16 UN MALE BULKHEAD ORFS 24 25 26 16.1 73.5
 6,3 FFH04-12/38SMB   24   26 16.1 73.5
 6,3 FFH04-13/38S M 9/16"-18 UNF MALE JIC 24   26 16.1 53.6
 6,3 FFH04-14/38S M 9/16"-18 UNF MALE BULKHEAD JIC 24 22 26 16.1 72
 6,3 FFH04-2/1615 M M16x1,5 MALE 10L 24   26 16.1 50.5
 6,3 FFH04-28/12S M 3/4"-16 UNF FEMALE JIC 24   26 16.1 50
 6,3 FFH04-3/1615 M M16x1.5 MALE 8S 24   26 16.1 51.5
 6,3 FFH04-5/1615 M M16x1,5 MALE BULKHEAD 10L 24 22 26 16.1 74.5
 6,3 FFH04-6/1615 M M16x1.5 MALE BULKHEAD 8S 24 22 26 16.1 75.5
 6,3 FFH04-7/1415 M M14x1,5 MALE BULKHEAD SHORT 8L 24 19 26 16.1 63.5
 6,3 FFH04 14JPT M RC 1/4 FEMALE (JPT) 24   26   49
 6,3 FFH04 14SAE M 7/16"-20 UNF FEMALE ORB 24   26 16.1 49
 6,3 FFH04-27/38S M 11/16” – 16 UN 24 24 26   50
 10 FFH06 12GAS M BSPP 1/2" FEMALE 30   33 19.7 73.3
 10 FFH06 38GAS M BSPP 3/8" FEMALE 30   33 19.7 68.3
 10 FFH06 38NPT M NPTF 3/8" FEMALE 30   33 19.7 68.3
 10 FFH06 12NPT M NPTF 1/2" FEMALE 30   33 19.7 71.8
 10 FFH06 12SAE M 3/4"-16 UNF FEMALE ORB 30   33 19.7 71.8
 10 FFH06 38GAS MR   30   33 19.7 68.3
 10 FFH06 38GAS MV BSPP 3/8" FEMALE 30   33 19.7 68.3
 10 FFH06-1/12G M 1/2" BSPP MALE 30   33 19.7 75.8
 10 FFH06-1/12S M 3/4"-16 UNF MALE 30   33 19.7 72.4
 10 FFH06-11/12S M 13/16"-16 UN MALE ORFS 30   33 19.7 74
 10 FFH06-11/38S M 11/16"-16 UN MALE ORFS 30   33 19.7 72.3
 10 FFH06-12/12S M 13/16"-16 UN MALE BULKHEAD ORFS 30 27 33 19.7 98
 10 FFH06-12/12SMB   30   33 19.7 98
 10 FFH06-14/12S M 3/4"-16 UN MALE BULKHEAD JIC 30 27 33 19.7 97.9
 10 FFH06-2/1615 M M16x1,5 MALE 10L 30   33 19.7 72.3
 10 FFH06-2/1815 M M18x1,5 MALE 12L 30   33 19.7 72.3
 10 FFH06-2/2215 M M22x1,5 MALE 15L 30   33 19.7 73.3
 10 FFH06-21/12G M 1/2" BSPP MALE 30   33 19.7 75.3
 10 FFH06-3/2015 M M20x1.5 MALE 12S 30   33 19.7 73.3
 10 FFH06-5/1815 M M18x1,5 MALE BULKHEAD 12L 30 24 33 19.7 97.3
 10 FFH06-5/2215 M M22x1,5 MALE BULKHEAD 15L 30 27 33 19.7 99.3
 10 FFH06-6/2015 M M20x1.5 MALE BULKHEAD 12S 30 27 33 19.7 99.3
 10 FFH06-7/1815 M M18x1.5 MALE BULKHEAD SHORT 12L 30 24 33 19.7 87.3
 10 FFH06-7/2215 M M22x1.5 MALE BULKHEAD SHORT 15L 30 27 33 19.7 89.3
 10 FFH06-77/12G M   30   33 19.7 72.8
 10 FFH06VS 38GAS M   30   33 19.7 68.3
 10 FFH06 12JPT M RC 1/2 FEMALE (JPT) 30 30 33   71.8
 10 FFH06 38GAS MB BSPP 3/8" FEMALE 30 30 33   68.3
 10 FFH06 38JPT M RC 3/8 FEMALE (JPT) 30   33   68.3
 10 FFH06 38NPT MT NPTF 3/8" FEMALE 30   33 19.7 68.3
 10 FFH06-27/38S M 11/16” – 16 UN 30 30 33   69.3
 10 FFH06-7/1815 MT M18x1.5 MALE BULKHEAD SHORT 12L 30 24 33 19.7 87.3
 10 FFH06-7/2215 MT M22x1.5 MALE BULKHEAD SHORT 15L 30 27 33 19.7 89.3
 12,5 FFH08 12GAS M BSPP 1/2" FEMALE 34   37 24.5 75
 12,5 FFH08 34GAS M BSPP 3/4" FEMALE 34   37 24.5 78
 12,5 FFH08 12NPT M NPTF 1/2" FEMALE 34   37 24.5 77
 12,5 FFH08 34SAE M 1-1/16"-12 UN FEMALE ORB 34   37 24.5 81
 12,5 FFH08 12GAS MV BSPP 1/2" FEMALE 34   37 24.5 75
 12,5 FFH08 12SAE M 3/4"-16 UNF FEMALE ORB 34   37 24.5 75
 12,5 FFH08 34NPT M NPTF 3/4" FEMALE 34   37 24.5 77
 12,5 FFH08 58SAE M 7/8"-14 UNF FEMALE ORB 34   37 24.5 76
 12,5 FFH08-1/12G M 1/2" BSPP MALE 34   37 24.5 78
 12,5 FFH08-1/12S M 3/4"-16 UNF MALE 34   37 24.5 74.6
 12,5 FFH08-1/2215 M M22x1,5 MALE 34   37 24.5 78.5
 12,5 FFH08-12/12S M 13/16"-16 UN MALE BULKHEAD ORFS 34 27 37 24.5 100
 12,5 FFH08-12/1SMB   34   42 24.5 113
 12,5 FFH08-12/34S M 1-3/16"-12 UN MALE BULKHEAD ORFS 34 38 37 24.5 105.5
 12,5 FFH08-12/58S M 1"-14 UNS MALE BULKHEAD ORFS 34 34 37 24.5 104
 12,5 FFH08-12/58SMB   34   37 24.5 104
 12,5 FFH08-13/58S M 7/8"-14 UNF MALE JIC 34   37 24.5 82.8
 12,5 FFH08-14/34S M 1-1/16"-12 UN MALE BULKHEAD JIC 34 34 37 24.5 108.4
 12,5 FFH08-14/58S M 7/8"-14 UNF MALE BULKHEAD JIC 34 27 37 24.5 103.6
 12,5 FFH08-2/1815 M M18x1,5 MALE 12L 34   37 24.5 74.5
 12,5 FFH08-2/2215 M M22x1,5 MALE 15L 34   37 24.5 75.5
 12,5 FFH08-3/2415 M M24x1,5 MALE 16S 34   37 24.5 77.5
 12,5 FFH08-5/1815 M M18x1,5 MALE BULKHEAD 12L 34 24 37 24.5 99.5
 12,5 FFH08-5/2215 M M22x1,5 MALE BULKHEAD 15L 34   37 24.5 101.5
 12,5 FFH08-61/34S M 1-1/16"-12 UN 90° MALE 34   38 24.5 89
 12,5 FFH08-61/38S M 9/16"-18 UN 90° MALE 34   38 24.5 89
 12,5 FFH08-7/2215 M M22x1.5 MALE BULKHEAD SHORT 15L 34   37 24.5 91.5
 12,5 FFH08 12JPT M RC 1/2 FEMALE (JPT) 34   37   77
 12,5 FFH08 12NPT MT NPTF 1/2" FEMALE 34   37 24.5 77
 16 FFH10 34GAS M BSPP 3/4" FEMALE 41   45 27 91.1
 16 FFH10 34NPT M NPTF 3/4" FEMALE 41   45 27 91.1
 16 FFH10 34SAE M 1-1/16"-12 UN FEMALE ORB 41   45 27 94.1
 16 FFH10 58GAS M BSPP 5/8" FEMALE 41   45 27 91.1
 16 FFH10-1/34S M 1-1/16"-12 UN MALE 41   45 27 90.8
 16 FFH10-1/58S M 7/8"-14 UNF MALE 41   45 27 88.4
 16 FFH10-2/2615 M M26x1,5 MALE 18L 41   45 27 87.7
 16 FFH10-3/2415 M M24x1,5 MALE 16S 41   45 27 89.7
 16 FFH10-5/2615 M M26x1,5 MALE BULKHEAD 18L 41 36 45 27 115.7
 16 FFH10-6/2415 M M24x1.5 MALE BULKHEAD 16S 41 30 45 27 115.7
 20 FFH12 34GAS M BSPP 3/4" FEMALE 42   46 29.95 101.6
 20 FFH12 1GAS M BSPP 1" FEMALE 42   46 29.95 101.6
 20 FFH12 1NPT M NPTF 1" FEMALE 42   46 29.95 101.5
 20 FFH12 1SAE M 1-5/16"-12 UN FEMALE ORB 42   46 29.95 101.6
 20 FFH12 34NPT M NPTF 3/4" FEMALE 42   46 29.95 101.6
 20 FFH12 34SAE M 1-1/16"-12 UN FEMALE ORB 42   46 29.95 101.6
 20 FFH12-1/34S M 1-1/16"-12 UN MALE 42   46 29.95 101
 20 FFH12-12/34S M 1-3/16"-12 UN MALE BULKHEAD ORFS 42 38 46 29.95 127.4
 20 FFH12-13/34S M 1-1/16"-12 UN MALE JIC 42   46 29.95 107.8
 20 FFH12-14/34S M 1-1/16"-12 UN MALE BULKHEAD JIC 42 34 46 29.95 130.3
 20 FFH12-2/3020 M M30x2 MALE 22L 42   46 29.95 96.9
 20 FFH12-3/3020 M M30x2 MALE 20S 42   46 29.95 98.9
 20 FFH12-5/3020 M M30x2 MALE BULKHEAD 22L 42 41 46 29.95 124.9
 20 FFH12-6/3020 M M30x2 MALE BULKHEAD 20S 42 41 46 29.95 129.9
 20 FFH12 34JPT M RC 3/4 FEMALE (JPT) 42   46   101.5
 25 FFH16 1GAS M BSPP 1" FEMALE 55   59 36 106.5
 25 FFH16 112GAS M BSPP 1-1/2" FEMALE 55   59 36 110
 25 FFH16 114GAS M BSPP 1-1/4" FEMALE 55   59 36 109
 25 FFH16 114NPT M NPTF 1-1/4" FEMALE 55   59 36 106.5
 25 FFH16 1NPT M NPTF 1" FEMALE 55   59 36 107.5
 25 FFH16 1SAE M 1-5/16"-12 UN FEMALE ORB 55   59 36 106.5
 25 FFH16-3/3620 M M36x2 MALE 25S 55   59 36 111
 25 FFH16-6/3620 M M36x2 MALE BULKHEAD 25S 55 46 59 36 140
 31,5 FFH20 114GAS M BSPP 1-1/4" FEMALE 55   59   109

Download Ffh Catalogue

Hydraulic Products and Components
