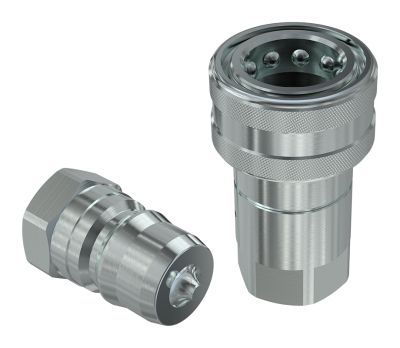

Standard couplings for industrial applications, ISO 7241-B interchange

Standard couplings for industrial applications. Complete range of sizes from 1/8" to 2" (with BSP, NPT and SAE female threads) available. ISO 7241 part B interchange.


Items
Size (mm)  PartNumber Thread HEX1 HEX2 HEX3 D1 L1
 3,2 HNV 18 GAS F BSPP 1/8" FEMALE 18     23 50.3
 3,2 HNV 18 NPT F NPTF 1/8" FEMALE 18     23 50.3
 6,3 HNV 14 GAS F BSPP 1/4" FEMALE 19     28 56
 6,3 HNV 14 NPT F NPTF 1/4" FEMALE 19     28 56
 6,3 HNV 14-38SAE F 9/16"-18 UNF FEMALE ORB 19     28 60
 10 HNV 38 GAS F BSPP 3/8" FEMALE 24     35 64
 10 HNV 38 NPT F NPTF 3/8" FEMALE 24     35 64
 10 HNV 38 NPT F N NPTF 3/8" FEMALE 24     35 64
 10 HNV 38-12SAE FJ   25     35 67
 10 HNV 38-38SAE F 9/16"-18 UNF FEMALE ORB 24     35 64
 12,5 HNV 12 GAS F BSPP 1/2" FEMALE 30     44 71.5
 12,5 HNV 12 GAS F V BSPP 1/2" FEMALE 30     44 71.5
 12,5 HNV 12 NPT F NPTF 1/2" FEMALE 30     44 71.5
 12,5 HNV 12-58SAE F 7/8"-14 UNF FEMALE ORB 30     44 71.5
 20 HNV 34 GAS F BSPP 3/4" FEMALE 36     52 89
 20 HNV 34 NPT F NPTF 3/4" FEMALE 36     52 89
 20 HNV 34-12/34SF 1-3/16"-12 UN MALE BULKHEAD ORFS 36 36   52 146
 20 HNV 34-34SAE F 1-1/16"-12 UN FEMALE ORB 36     52 89
 25 HNV 1 GAS F BSPP 1" FEMALE 41     62 106
 25 HNV 1- 1SAE F 1-5/16"-12 UN FEMALE ORB 41     62 106
 25 HNV 1 NPT F NPTF 1" FEMALE 41     62 106
 37,5 HNV112-114GAS F BSPP 1-1/4" FEMALE 65   65 75 126
 37,5 HNV112 GAS F BSPP 1-1/2" FEMALE 65   65 75 126.4
 50 HNV 2 NPT F NPTF 2" FEMALE 89   89 105 142
Size (mm)  PartNumber Thread HEX1 HEX3 D1 D3 L1
 3,2 HNV 18 GAS M BSPP 1/8" FEMALE 17   18.5 10.8 31.5
 3,2 HNV 18 NPT M NPTF 1/8" FEMALE 17   19 10.8 31.5
 6,3 HNV 14 GAS M BSPP 1/4" FEMALE 19   21 14.1 35
 6,3 HNV 14 NPT M NPTF 1/4" FEMALE 19   21 14.1 35
 6,3 HNV 14-38SAE M 9/16"-18 UNF FEMALE ORB 19   21 14.1 39
 10 HNV 38 GAS M BSPP 3/8" FEMALE 22   24.5 19 39
 10 HNV 38 NPT M NPTF 3/8" FEMALE 22   24.5 19 39
 10 HNV 38 NPT M N NPTF 3/8" FEMALE 22   24.5 19 39
 10 HNV 38-12SAE M 3/4"-16 UNF FEMALE ORB 27   30 19 45
 10 HNV 38-38SAE M 9/16"-18 UNF FEMALE ORB 22   24.5 19 39
 12,5 HNV 12 GAS M BSPP 1/2" FEMALE 27   30 23.5 44
 12,5 HNV 12 NPT M NPTF 1/2" FEMALE 27   30 23.5 44
 12,5 HNV 12-12SAE M 3/4"-16 UNF FEMALE ORB 27   30 23.5 44
 12,5 HNV 12-58SAE M 7/8"-14 UNF FEMALE ORB 30   33 23.5 50
 20 HNV 34 GAS M BSPP 3/4" FEMALE 34   38 31.5 55
 20 HNV 34 NPT M NPTF 3/4" FEMALE 34   38 31.5 55
 20 HNV 34-34SAE M 1-1/16"-12 UN FEMALE ORB 34   38 31.5 55
 25 HNV 1- 1SAE M 1-5/16"-12 UN FEMALE ORB 41   45 37.8 66
 25 HNV 1 GAS M BSPP 1" FEMALE 41   45 37.8 66
 25 HNV 1 NPT M NPTF 1" FEMALE 41   45 37.8 66
 37,5 HNV112 GAS M BSPP 1-1/2" FEMALE 65 65 71 44.5 126
 37,5 HNV112-114GAS M BSPP 1-1/4" FEMALE 65 65 71 44.5 126
 50 HNV 2 NPT M NPTF 2" FEMALE 89 89 97 63.25 142
