HNV stainless steel

HNV stainless steel

Applications

Standard couplings for industrial applications, ISO 7241-B interchange, stainless steel versions

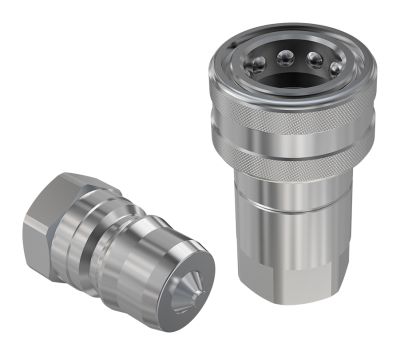

Standard couplings for industrial applications with stainless steel components (AISI 316) and Viton seals. ISO 7241 part B interchange.

Items

Female
Male

Size (mm)	PartNumber	Thread	HEX1	D1	L1
6,3	HNV 14 GAS F 2V	BSPP 1/4" FEMALE	19	28	56
6,3	HNV 14 NPT F 2V	NPTF 1/4" FEMALE	19	28	56
10	HNV 38 GAS F 2V	BSPP 3/8" FEMALE	24	35	64
10	HNV 38 NPT F 2V	NPTF 3/8" FEMALE	24	35	64
12,5	HNV 12 GAS F 2V	BSPP 1/2" FEMALE	30	44	71.5
12,5	HNV 12 NPT F 2V	NPTF 1/2" FEMALE	27	44	71.5
20	HNV 34 GAS F 2V	BSPP 3/4" FEMALE	36	52	89
20	HNV 34 NPT F 2V	NPTF 3/4" FEMALE	36	52	89
25	HNV 1 NPT F 2V	NPTF 1" FEMALE	41	60	106
25	HNV 1 GAS F 2V	BSPP 1" FEMALE	41	60	106.3
37,5	HNV112 NPT F 2V	NPTF 1-1/2" FEMALE	65	75	126.3
37,5	HNV112-114G F2V	BSPP 1-1/4" FEMALE	65	75	126
37,5	HNV112-114N F2V	NPTF 1-1/4" FEMALE	65	75	126
50	HNV 2 GAS F 2V	BSPP 2" FEMALE	89	105	142
50	HNV 2 NPT F 2V	NPTF 2" FEMALE	89	105	142

Size (mm)	PartNumber	Thread	HEX1	D1	D3	L1
6,3	HNV 14 GAS M 2V	BSPP 1/4" FEMALE	19	21	14.1	35
6,3	HNV 14 NPT M 2V	NPTF 1/4" FEMALE	19	21	14.1	35
10	HNV 38 GAS M 2V	BSPP 3/8" FEMALE	22	24.5	19	39
10	HNV 38 NPT M 2V	NPTF 3/8" FEMALE	22	24.5	19	39
12,5	HNV 12 GAS M 2V	BSPP 1/2" FEMALE	27	30	23.5	44
12,5	HNV 12 NPT M 2V	NPTF 1/2" FEMALE	27	30	23.5	44
20	HNV 34 GAS M 2V	BSPP 3/4" FEMALE	34	38	31.5	55
20	HNV 34 NPT M 2V	NPTF 3/4" FEMALE	34	38	31.5	55
25	HNV 1 GAS M 2V	BSPP 1" FEMALE	41	45	37.8	66
25	HNV 1 NPT M 2V	NPTF 1" FEMALE	41	45	37.8	66
37,5	HNV112 NPT M 2V	NPTF 1-1/2" FEMALE	65	71	44.5	125
37,5	HNV112-114G M2V	BSPP 1-1/4" FEMALE	65	70	44.5	126
37,5	HNV112-114N M2V	NPTF 1-1/4" FEMALE	65	70	44.5	126
50	HNV 2 GAS M 2V	BSPP 2" FEMALE	89	97	63.2	142
50	HNV 2 NPT M 2V	NPTF 2" FEMALE	89	97	63.2	142
