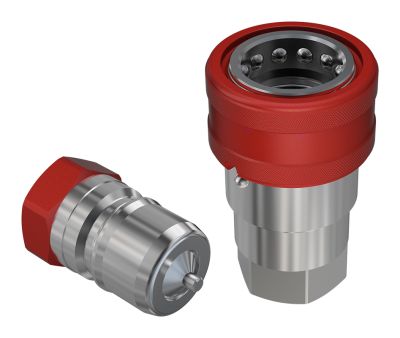

HNVFR


HNVFR

Applications

Standard couplings for industrial applications, ISO 7241-B interchange, BOP certified

Special version derived from HNV couplings purposely designed for BOP applications and API certified. Interchangeable according to ISO 7241-B standards.


Items
Size (mm)  PartNumber Thread HEX1 D1 L1
 12,5 HNVFR 12 NPT F NPTF 1/2" FEMALE 30 47.2 72
 20 HNVFR 34 NPT F NPTF 3/4" FEMALE 36 56.2 89
 25 HNVFR 1 NPT F NPTF 1" FEMALE 41 62.2 106.4
Size (mm)  PartNumber Thread HEX1 D1 D3 L1
 12,5 HNVFR 12 NPT M NPTF 1/2" FEMALE 27 30 23.5 44
 20 HNVFR 34 NPT M NPTF 3/4" FEMALE 36 38 31.5 55
 25 HNVFR 1 NPT M NPTF 1" FEMALE 41 45 37.8 66

Download Hnvfr Catalogue
