HNVN


HNVN
Applications

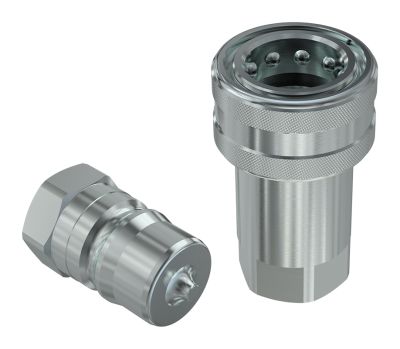

Standard couplings for industrial applications, Japanese market interchange

Standard couplings for industrial applications, interchangeable for Japanese market.


Items
Size (mm)  PartNumber Thread HEX1 D1 L1
 6,3 HNVN 14 GAS F BSPP 1/4" FEMALE 19 28.2 51
 6,3 HNVN 14 JPT F RC 1/4 FEMALE (JPT) 19 28.2 51
 10 HNVN 38 GAS F BSPP 3/8" FEMALE 24 35 64
 12,5 HNVN 12 GAS F BSPP 3/4" FEMALE 30 44 71
 12,5 HNVN 12 JPT F RC 1/2 FEMALE (JPT) 30 44 71
Size (mm)  PartNumber Thread HEX1 D1 D3 L1
 6,3 HNVN 14 GAS M BSPP 1/4" FEMALE 19 21 14.2 33
 6,3 HNVN 14 JPT M RC 1/4 FEMALE (JPT) 19 21 14.2 33
 10 HNVN 38 GAS M BSPP 3/8" FEMALE 22 24.5 18.2 39
 12,5 HNVN 12 GAS M BSPP 3/4" FEMALE 27 30 24.3 44
 12,5 HNVN 12 JPT M RC 1/2 FEMALE (JPT) 27 30 24.3 44

Download Hnvn Catalogue
