O Series


O Series
Applications

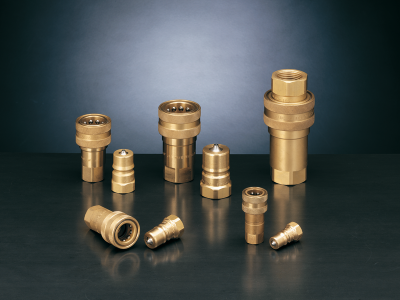

The quick-release couplings of the O series are made in brass and then they are subjected to a superficial passivation to increase their resistance to the environment. The inside parts are all made in stainless steel AISI 303. The accordance with the ISO 7241-1B standard of these couplings assures their interchangeability all over the world. The brass quick-release couplings are mainly used with not very aggressive fluid like fresh water, water and glicole, etc.


Features
  • Interchangeability: ISO 7241-1B
  • Shut-off system: poppet valve
  • Latching system: balls - bearing
  • Connection: pulling back the sleeve
  • Disconnection: pulling back the sleeve
  • Connectability: without pressure
  • Disconnection under pressure: not allowed
  • Threads: BSP – NPTF
  • Sizes: 1/4" , 3/8”, 1/2”, 3/4”, 1”
  • Materials: Female in brass, male in brass Valves and guidevalves in stainless steel AISI 303
  • Surface treatment: passivation Springs in stainless steel, balls in stainless steel AISI 316
  • Seals: standard NBR, on request VITON
  • Antiextrusion rings: PTFE
  • Working Temperatures: NBR -20°C +100°C VITON -15°C +180°C
