OGV
Applications

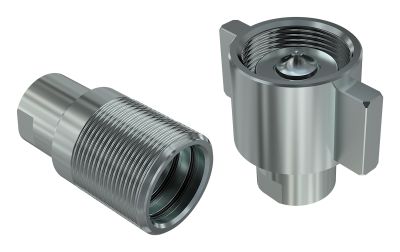

Screw to connect couplings for oil & gas application, market interchange
Standard screw-to-connect coupling suitable for Oil & Gas applications. Robust sleeve design, poppet valve and ACME connection thread.
Items
| Size (mm) | PartNumber | Thread | HEX1 | HEX3 | D1 | L1 |
|---|---|---|---|---|---|---|
| 20 | OGV12 34NPS F | NPSF 3/4 FEMALE | 32 | 50 | 55 | 72.2 |
| 25 | OGV16 1NPS F | NPSF 1 FEMALE | 41 | 105.5 | 87.6 | |
| 31,5 | OGV20 114NPT F | NPTF 1-1/4" FEMALE | 50 | 118.2 | 111.9 | |
| 37,5 | OGV24 112NPT F | NPTF 1-1/2" FEMALE | 55 | 147 | 127.1 | |
| 50 | OGV32 2NPT F | NPTF 2" FEMALE | 75 | 170 | 154.2 |
| Size (mm) | PartNumber | Thread | HEX1 | D1 | L1 |
|---|---|---|---|---|---|
| 20 | OGV12 34NPS M | NPSF 3/4 FEMALE | 32 | 44.25 | 83.1 |
| 25 | OGV16 1NPS M | NPSF 1 FEMALE | 41 | 57.12 | 106 |
| 31,5 | OGV20 114NPT M | NPTF 1-1/4" FEMALE | 50 | 66.65 | 136.5 |
| 37,5 | OGV24 112NPT M | NPTF 1-1/2" FEMALE | 55 | 82.52 | 151.7 |
| 50 | OGV32 2NPT M | NPTF 2" FEMALE | 75 | 101.57 | 179.1 |
