PVVM


PVVM
Applications

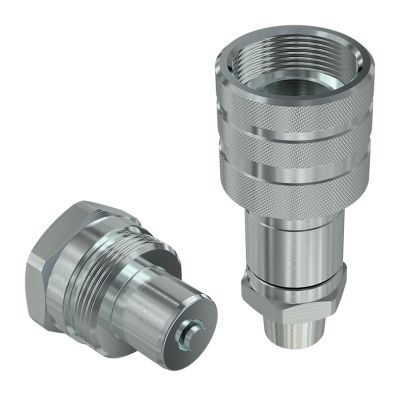

Screw to connect couplings for high pressure, ISO 14540 interchange, poppet valve

Screw-on couplings purposely designed for the heaviest applications (e.g.: hydraulic jacks for bridge maintenance). Equipped with a robust metal-to-metal sealing poppet valve, this series guarantees the best performance on the market in terms of maximum working pressure. ISO 14540 interchange.


Items
Size (mm)  PartNumber Thread HEX1 HEX3 D1 L1
 6,3 PVVM1/14NPT F NPTF 1/4" MALE 21 30 33 63
 10 PVVM1/38NPT F NPTF 3/8" MALE 25   36 83
 10 PVVM38-1/14NPTF NPTF 1/4" MALE 25   36 148.7
 10 PVVM38-23/14G F BSPP 1/4 MALE SPECIAL 25   36 147.7
 10 PVVM38-23/14GFL   25   36 147.7
Size (mm)  PartNumber Thread HEX1 D1 D3 L1
 6,3 PVVM 14 NPT M NPTF 1/4" FEMALE 27 30   34
 10 PVVM 38 NPT M NPTF 3/8" FEMALE 32 35   39
 10 PVVM38-23/14GML   34 35.5 19 64
 10 PVVM38-23/14G M BSPP 1/4 MALE SPECIAL 25 35.5   63.8

Download Pvvm Catalogue
