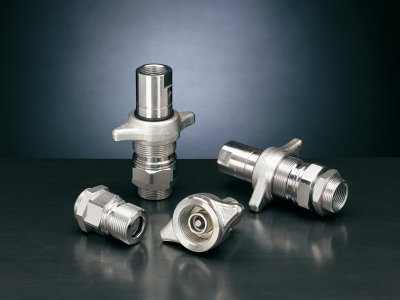

T Series


T Series
Applications

The T series screw-on couplings are especially used in the fields of the road machines and trucks. Peculiar features of this kind of couplings are the strength and the easy manual connection helped by the particular design of the male’s sleeve. Last but not least, the T series is suitable to the panel mounting.


Features
  • Interchangeability: european market
  • Shut-off system: poppet valve
  • Latching system: screw-on
  • Connection: screwing-on the male’s sleeve
  • Disconnection: screwing-off the male’s sleeve
  • Connectability: allowed under residual pressure
  • Disconnection under pressure: allowed under residual pressure
  • Threads: BSP
  • Sizes: 3/4”, 1”
  • Materials: Female in carbon steel sleeve and male in high grade carbon steel, steel hardened valve
  • Surface treatment: zinc plating and Cr III passivation, springs in C72 steel
  • Seals: standard NBR, on request VITON
  • Working Temperatures: NBR -20°C +100°C VITON -15°C +140°C

For temperature exceeding this values, the quick-release couplings will be supplied with all components in steel.
