TNL


TNL
Applications

Standard couplings, free flow

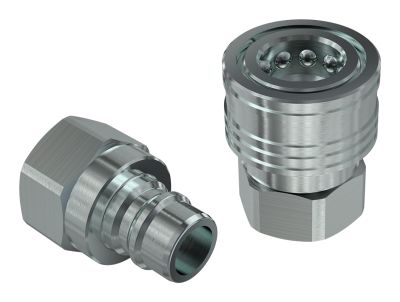

TNL series couplings are commonly used in US market as an alternative to standard series. Assembled without internal valves they have been designed to maximize flow. Fully interchangeable with TNV versions.


Items
Size (mm)  PartNumber Thread HEX1 D1 L1
 6,3 TNL 04 NPT F NPTF 1/4" FEMALE 22 24 50
 12,5 TNL 08 GAS F BSPP 1/2" FEMALE 30 34 65
 12,5 TNL 08 NPT F NPTF 1/2" FEMALE 30 34 65
 20 TNL 12 NPT F NPTF 3/4" FEMALE 36 42 64
 20 TNL 12 NPT F V NPTF 3/4" FEMALE 36 42 64
Size (mm)  PartNumber Thread HEX1 D1 D3 L1
 6,3 TNL 04 NPT M NPTF 1/4" FEMALE 22 24 10.8 49
 10 TNL 06 NPT M NPTF 3/8" FEMALE 30 27 12.9 57
 12,5 TNL 08 GAS M BSPP 1/2" FEMALE 30 34 16 63
 20 TNL 12 NPT M NPTF 3/4" FEMALE 36 42 23.3 64

Download Tnl Catalogue
