Standard couplings

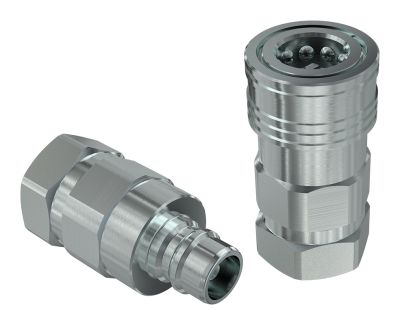

TNV series couplings are commonly used in US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with TNL parts (free flow) same series.


Items
Size (mm)  PartNumber Thread HEX1 D1 L1
 6,3 TNV 04 NPT F NPTF 1/4" FEMALE 22 24 50
 10 TNV 06 NPT F NPTF 3/8" FEMALE 24 27 57
 12,5 TNV 08 NPT F NPTF 1/2" FEMALE 30 34 65
 20 TNV 12 NPT F NPTF 34" FEMALE 36 42 64
 20 TNV120/1116UN F 1-1/16"-12 UN FEMALE ORB 36 42 64
 20 TNV120/34GAS F BSPP 3/4 FEMALE ORB 36 42 64
 25 TNV 16 NPT F NPTF 1" FEMALE 46 50.5 71
 25 TNV160/1GAS F BSPP 1 FEMALE ORB 46 50.5 71
 31,5 TNV 20 NPT F NPTF 1-1/4" FEMALE 50 56 97
 37,5 TNV 24 NPT F NPTF 1-1/2" FEMALE 65 70 91
Size (mm)  PartNumber Thread HEX1 D1 D3 L1
 6,3 TNV 04 NPT M NPTF 1/4" FEMALE 22 24 10.8 49
 10 TNV 06 NPT M NPTF 3/8" FEMALE 30 27 12.9 57
 12,5 TNV 08 NPT M NPTF 1/2" FEMALE 30 34 16 63
 20 TNV 12 NPT M NPTF 34" FEMALE 36 42 23.3 64
 20 TNV120/1116UN M 1-1/16"-12 UN FEMALE ORB 36 42 23.3 64
 20 TNV120/34GAS M BSPP 3/4 FEMALE ORB 36 42 23.3 64
 20 TNV121/1116UN M 1-1/16"-12 UN MALE JIC 36 42 23.3 64
 25 TNV 16 NPT M NPTF 1" FEMALE 46 50.5 29.7 68
 25 TNV160/1GAS M BSPP 1 FEMALE ORB 46 50.5 29.7 68
 31,5 TNV 20 NPT M NPTF 1-1/4" FEMALE 50 56 36.1 91
 37,5 TNV 24 NPT M NPTF 1-1/2" FEMALE 65 70 43.5 85
