TV Series


TV Series
Applications

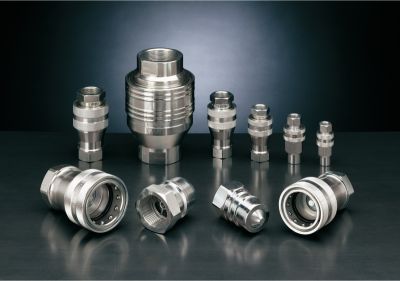

In Italian language TV means “TIPO VECCHIO”(old type) because this series of couplings is the first that MB began to produce from 1956 on his own drawings: TV series is well known in Italy and now MB is the only producer of it. These couplings are suitable for any hydraulic application in industry and in agriculture: the hardiness and the wide range of sizes are their peculiar features. The 1.1/4”, 1.1/2” and 2” sizes are also available in brass and in stainless steel AISI 316.


Features
  • Interchangeability: according to MB internal standard
  • Shut-off system: poppet valve
  • Latching system: balls - bearing
  • Connection: pulling back the sleeve
  • Disconnection: pulling back the sleeve
  • Connectability: without pressure
  • Disconnection under pressure: not allowed
  • Threads: BSP
  • Sizes: 1/4" , 3/8", 1/2", 3/4", 1", 1.¼ ", 1.½ ", 2", 2.1/2", 3"
  • Materials: Female in carbon steel, male in high grade carbon steel, induction hardened steel hardened valve
  • Surface treatment: zinc plating and Cr III passivation, springs in C72 steel, high resistance balls 100 C6
  • Seals: standard NBR 85°Shore, on request VITON
  • Antiextrusion rings: only in the 1” size
  • Working Temperatures: NBR -20°C +100°C VITON -15°C +140°C

For temperature exceeding this values, the quick-release couplings will be supplied with all components in steel.
