UHP 100


UHP 100
Applications

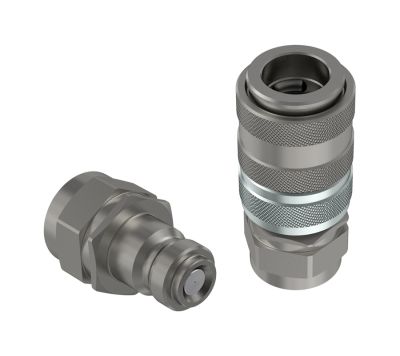

Couplings for Ultra High Pressure applications (100 MPa series)

UHP couplings are the most advanced Faster solution for hydraulic applications with ultra high working pressures of 100 MPa and more. Very robust and reliable, they are characterized by redundant visual and mechanical safety systems.


Items
Size (mm)  PartNumber Thread HEX1 D1 L1
 6,3 UHP100 14NPT F NPTF 1/4" FEMALE 24 28 59.3
 6,3 UHP100 14GMS F BSP 1/4 FEMALE (METAL SEALING) 24 28 62.3
Size (mm)  PartNumber Thread HEX1 D1 D3 L1
 6,3 UHP100 14NPT M NPTF 1/4" FEMALE 22 25 14.8 38.3
 6,3 UHP100 14GMS M BSP 1/4 FEMALE (METAL SEALING) 22 25 14.8 39

Download Uhp 100 Catalogue
