UHP 150


UHP 150
Applications

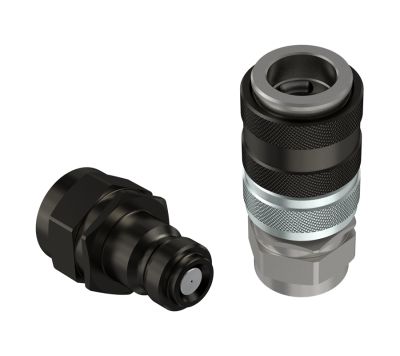

Couplings for Ultra High Pressure applications (150 MPa series)

UHP couplings are the most advanced Faster solution for hydraulic applications with ultra high working pressures of 150 MPa and more. Very robust and reliable, they are characterized by redundant visual and mechanical safety systems.


Items
Size (mm)  PartNumber Thread HEX1 D1 L1
 6,3 UHP150 14NPT F NPTF 1/4" FEMALE 24 28 59.3
 6,3 UHP150 14GMS F BSP 1/4 FEMALE (METAL SEALING) 24 28 62.3
Size (mm)  PartNumber Thread HEX1 D1 D3 L1
 6,3 UHP150 14NPT M NPTF 1/4" FEMALE 22 25 14.8 38.3
 6,3 UHP150 14GMS M BSP 1/4 FEMALE (METAL SEALING) 22 25 14.8 39

Download Uhp 150 Catalogue
