VA
Applications

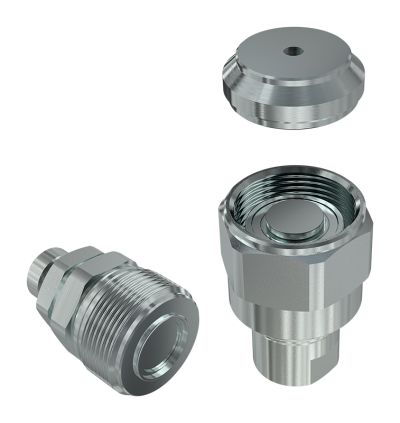

Screw to connect couplings for braking systems
VA couplings are commonly used in Agriculture Market for braking systems and consequently very similar to VF braking valves. Characterized by screw-to-connect sleeve, their interchangeability is based on market driven standards.
Items
| Size (mm) 10 mm
Size (mm)
Size (in) 3/8" |
PartNumber | Thread | HEX1 | HEX3 | D1 | L1 |
|---|---|---|---|---|---|---|
| 10 | VAN0/1815 F | M18x1,5 FEMALE ORB | 32 | 40 | 44 | 60 |
| Size (mm) | PartNumber | Thread | HEX1 | HEX2 | D1 | D3 | L1 |
|---|---|---|---|---|---|---|---|
| 10 | VA 5/2215 M | M22x1,5 MALE BULKHEAD 15L | 32 | 27 | 36 | 36 | 59 |
| 10 | VA 9/1815 M | M18x1,5 MALE BULKHEAD 12L | 32 | 27 | 36 | 36 | 53 |
