VV


VV
Applications

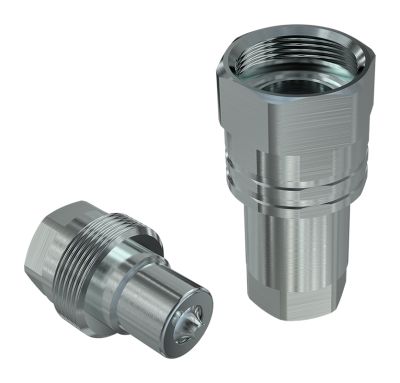

Screw to connect standard couplings, double function sleeve.

VV series couplings are very robust and reliable and allow to connect under residual pressure. Thanks to a double function sleeve it's also possible to connect a female part with either VV or NV male halves. Faster proprietary profile.


Items
Size (mm)  PartNumber Thread HEX1 HEX3 D1 L1
 6,3 VV 14 GAS F BSPP 1/4" FEMALE 19 27 30 60
 6,3 VV 14 NPT F NPTF 1/4" FEMALE 19 27 30 60
 10 VV 38 GAS F BSPP 3/8" FEMALE 24 34 38 72
 10 VV 38 NPT F NPTF 3/8" FEMALE 24 34 38 72
 12,5 VV 12 GAS F BSPP 1/2" FEMALE 27 38 42 79
 12,5 VV 12 NPT F NPTF 1/2" FEMALE 27 38 42 79
 20 VV 34 GAS F BSPP 3/4" FEMALE 34 50 55 106
 20 VV 34 NPT F NPTF 3/4" FEMALE 34 50 55 106
 25 VV 1 GAS F BSPP 1" FEMALE 41 55 61.5 124
 25 VV 1 NPT F NPTF 1" FEMALE 41 55 61.5 124
Size (mm)  PartNumber Thread HEX1 D1 D2 D3 L1
 6,3 VV 14 GAS M BSPP 1/4" FEMALE 19 25.4 14.1 21.5 34.7
 6,3 VV 14 NPT M NPTF 1/4" FEMALE 19 25.4 14.1   33
 10 VV 38 GAS M BSPP 3/8" FEMALE 24 30.4 18.9   40.5
 10 VV 38 NPT M NPTF 3/8" FEMALE 24 30.4 18.9   40.5
 12,5 VV 12 GAS M BSPP 1/2" FEMALE 27 34 20.5   49
 12,5 VV 12 NPT M NPTF 1/2" FEMALE 27 34 20.5   49
 20 VV 34 GAS M BSPP 3/4" FEMALE 34 43.5 27.9   62
 20 VV 34 NPT M NPTF 3/4" FEMALE 34 43.5 27.9   62
 25 VV 1 GAS M BSPP 1" FEMALE 41 52 31.8   73
 25 VV 1 NPT M NPTF 1" FEMALE 41 52 31.8   73

Download Vv Catalogue
