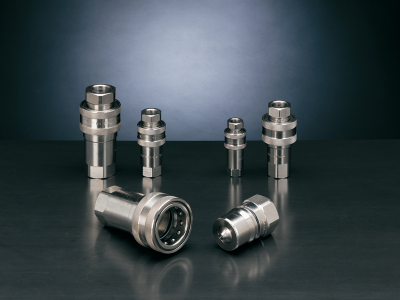

X Series


X Series

Applications

Thanks to the excellent resistance to the corrosion, the X series is used in several applications where there is an aggressive environment and/or an aggressive fluid inside to the coupling. The accordance with the ISO 7241-1B standard assures the interchangeability of this series all over the world. The stainless steel couplings are mainly used in industrial, chemical, oil and naval plant.


Features
  • Interchangeability: ISO 7241-1B
  • Shut-off system: poppet valve
  • Latching system: balls - bearing
  • Connection: pulling back the sleeve
  • Disconnection: pulling back the sleeve
  • Connectability: without pressure
  • Disconnection under pressure: not allowed
  • Threads: BSP – NPTF
  • Sizes: 1/4" , 3/8", 1/2", 3/4", 1"
  • Materials: Female in stainless steel AISI 316, male in stainless steel AISI 316, valves in stainless steel AISI 316
  • Surface treatment: electrolytic polishing springs in stainless steel AISI 316, balls in AISI 316
  • Seals: standard VITON, on request NBR
  • Antiextrusion rings: PTFE
  • Working Temperatures: NBR -20°C +100°C VITON -15°C +180°C

Code
XM1002 XF1002 XM1502 XF1502 XM1004 XF1004 XM1504 XF1504 XM1006 XF1006 XM1506 XF1506 XM1008 XF1008 XM1508 XF1508 XM1012 XF1012 XM1512 XF1512 XM1016 XF1016 XM1516 XF1516

Download X Series Catalogue
