FIT

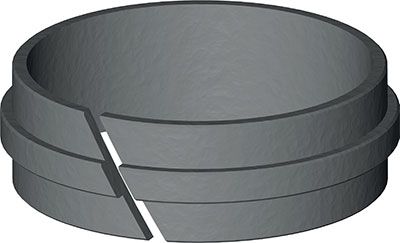

The Aston Seals FIT type guide rings have been developed to substitute traditional bronze guides in hydraulic cylinders. They guide the rod and prevent metallic contact with the cylinder head when radial forces act perpendicular to the direction of movement.
Chamfered edges prevent the splintering of the material during assembly and make the installation into the groove easier.
The compound used for these guides is a medium viscosity glass fibre reinforced acetal resin characterized by high strength, rigidity, hardness, impact resistance, resilience and excellent stability to high and low temperature.

  • Extended service life
  • Excellent wear-resistance
  • Simple design of groove and assembly
  • Reduce vibrations
  • Low friction
  • Good resistance to loads
  • Good mechanical stability at high temperature
  • Easy installation without expensive auxiliaries

FIT Seal Model

FIT 30 34 10 FIT 38 42 12.5 FIT 40 45 16 FIT 45 46.8 8.8 FIT 45 49 10 FIT 45 50 16 FIT 45 50 20 FIT 50 51.8 8.8 FIT 50 54 20 FIT 50 55 16 FIT 50 55 20 FIT 55 60 16 FIT 55 61 27 FIT 60 61.8 8.8 FIT 60 65 20 FIT 61 65 10 FIT 65 66.8 8.8 FIT 65 71 16 FIT 70 74 20 FIT 72 79 31 FIT 75 76.8 13.2 FIT 75 80 16 FIT 75.3 80.5 30 FIT 76 80 12 FIT 80 83 13.2 FIT 80 86 16 FIT 85 90 27 FIT 85 91 27 FIT 88 92 15 FIT 88.5 92.5 20 FIT 90 96 26 FIT 90.3 95.5 30 FIT 91 95 15 FIT 95 100 16 FIT 95 101 16 FIT 97 103 30 FIT 105 111 31 FIT 105.3 110.5 30 FIT 107 112 16 FIT 108.5 112.5 20 FIT 110 116 16 FIT 110 116 26 FIT 115 120 16 FIT 118 124 30 FIT 125 130 29 FIT 125 131 16 FIT 126 131 18 FIT 128.5 132.5 20 FIT 132 138 26 FIT 135 140 16 FIT 140 146 30 FIT 148.5 152.5 20 FIT 152 158 26 FIT 171.5 175.5 20 FIT 172 178 26 FIT 194 200 26 FIT 194.5 198.5 20
