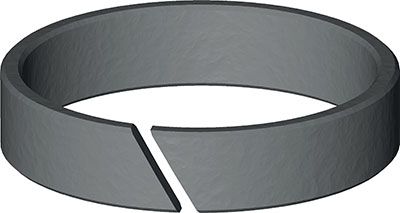

The Aston Seals FR type guide rings have been developed to substitute traditional bronze guides in hydraulic cylinders. They guide the rod or the piston and prevent metallic contact with the cylinder when radial forces act perpendicular to the direction of movement.
Chamfered edges prevent splintering of the material during assembly and make the installation into the groove easier.
The compound used for these guides is a medium viscosity glass  fibre reinforced acetal resin characterized by high strength, rigidity, hardness, impact resistance, resilience and excellent stability to high and low temperature.

  • Extended service life
  • Dimension suitable for both rod and piston
  • Excellent wear-resistance
  • Simple design of groove and assembly
  • Reduce vibrations
  • Low friction
  • Good resistance to loads
  • Good mechanical stability at high temperature
  • Easy installation without expensive auxiliaries

FR Seal Model

FR 40 45 5.6 FR 40 45 9.7 FR 43 48 9.7 FR 43.7 50 7.2 FR 45 50 5.6 FR 45 50 6.3 FR 45 50 8.1 FR 45 50 9.7 FR 45 50 15 FR 45 50 19.4 FR 45.4 50 6.7 FR 46 50 9.7 FR 46 50 10.2 FR 50 55 5.6 FR 50 55 9.7 FR 50 55 15 FR 50 55 20 FR 55 60 5.6 FR 55 60 9.7 FR 55 60 15 FR 56 60 10.2 FR 57.18 62.18 19.8 FR 58 63 5.6 FR 58 63 9.7 FR 16 19 5.5 FR 16 19 6.3 FR 16 19.1 4 FR 18 21.1 3.9 FR 20 25 5.6 FR 21.9 25 4 FR 25 30 5.6 FR 25 30 9.7 FR 27 32 4.2 FR 27 32 5.6 FR 27.3 32 9.82 FR 30 35 5.6 FR 30 35 9.7 FR 30 35 19.4 FR 32 37 5.6 FR 32 37 9.7 FR 32 37 15 FR 33 38 5.6 FR 35 40 4.5 FR 35 40 5.6 FR 35 40 6.3 FR 35 40 9.7 FR 36 41 5.6 FR 38 43 9.7 FR 58 63 15 FR 59 63 10 FR 60 65 5.6 FR 60 65 9.7 FR 60 65 15 FR 60 65 19.4 FR 60 65 20 FR 65 70 5.6 FR 65 70 9.7 FR 66 70 10.2 FR 67 72 5.6 FR 70 75 5.6 FR 70 75 9.7 FR 71.2 76.2 20 FR 75 80 5.6 FR 75 80 9.7 FR 75 80 19.4 FR 76 80 10 FR 80 85 5.6 FR 80 85 9.7 FR 80 85 15 FR 85 90 5.6 FR 85 90 9.7 FR 88.9 93.9 19.8 FR 90 95 5.6 FR 90 95 9.7 FR 90 95 19.4 FR 92 97 9.7 FR 95 100 5.6 FR 95 100 9.7 FR 96 100 10 FR 100 105 5.6 FR 100 105 9.7 FR 103 108 20 FR 105 110 9.7 FR 105 110 15 FR 105 110 19.4 FR 110 115 9.7 FR 115 120 9.7 FR 115 120 15 FR 120 125 5.6 FR 120 125 9.7 FR 122 127 9.7 FR 122 127 19.4 FR 130 135 9.7 FR 135 140 15 FR 145 150 19.4 FR 145 150 20 FR 155 160 15 FR 175 180 9.7 FR 175 180 15 FR 175 180 25 FR 176 180 25 FR 195 200 15 FR 200 205 15 FR 215 220 20 FR 225 230 15 FR 225 230 25 FR 230 235 15 FR 230 235 25 FR 235 240 15 FR 235 240 25 FR 240 245 15 FR 240 245 25 FR 245 250 15 FR 245 250 25 FR 250 255 15 FR 260 265 15 FR 265 270 15 FR 270 275 15 FR 275 280 15 FR 280 285 15 FR 282 287 15 FR 285 290 15 FR 290 295 15 FR 295 300 15 FR 300 305 15 FR 305 310 15 FR 310 315 15 FR 315 320 15 FR 320 325 15 FR 325 330 15 FR 330 335 15 FR 332 337 15 FR 335 340 15
