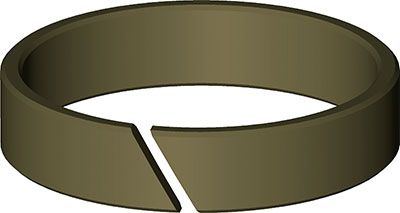

GRB

The Aston Seals GRB type guide rings have been developed to substitute traditional bronze guides in hydraulic cylinders. They guide the rod or the piston and prevent metallic contact with the cylinder when radial forces act perpendicular to the direction of movement.
Since GRB guide rings are machined, the thickness can be very accurate for high precision guiding.
The compound used for these guides assures exceptional low friction and high speed performance, high compatibility with nearly all media due to the chemical resistance which exceeds that of all other thermoplastics and elastomers.

  • Low static and dynamic friction (also without lubrication)
  • High speed allowed
  • No tendency of stick-slip
  • High precision of guiding
  • Good damping on radial vibration
  • High compatibility with nearly all fluids
  • Simple design of groove and assembly
  • Good mechanical stability at high temperature
  • Easy installation without expensive auxiliaries
  • Low resistance to heavy loads

GRB Seal Model

GRB 15 20 6.3 GRB 20 25 6.3 GRB 25 30 6.3 GRB 30 35 6.3 GRB 30 35 8.1 GRB 30 35 9.7 GRB 35 40 6.3 GRB 35 40 8.1 GRB 35 40 9.7 GRB 40 45 6.3 GRB 40 45 8.1 GRB 40 45 9.7 GRB 40 45 15 GRB 45 50 6.3 GRB 45 50 8.1 GRB 45 50 9.7 GRB 45 50 15 GRB 50 55 6.3 GRB 50 55 8.1 GRB 50 55 9.7 GRB 50 55 15 GRB 55 60 6.3 GRB 55 60 8.1 GRB 55 60 9.7 GRB 55 60 15 GRB 60 65 6.3 GRB 60 65 8.1 GRB 60 65 9.7 GRB 60 65 15 GRB 65 70 6.3 GRB 65 70 8.1 GRB 65 70 9.7 GRB 65 70 15 GRB 70 75 6.3 GRB 70 75 8.1 GRB 70 75 9.7 GRB 70 75 15 GRB 75 80 6.3 GRB 75 80 8.1 GRB 75 80 9.7 GRB 75 80 15 GRB 80 85 8.1 GRB 80 85 9.7 GRB 80 85 15 GRB 85 90 8.1 GRB 85 90 9.7 GRB 85 90 15 GRB 90 95 8.1 GRB 90 95 9.7 GRB 90 95 15 GRB 95 100 8.1 GRB 95 100 9.7 GRB 95 100 15 GRB 100 105 8.1 GRB 100 105 9.7 GRB 100 105 15 GRB 105 110 8.1 GRB 105 110 9.7 GRB 105 110 15 GRB 110 115 8.1 GRB 110 115 9.7 GRB 110 115 15 GRB 115 120 8.1 GRB 115 120 9.7 GRB 115 120 15 GRB 120 125 8.1 GRB 120 125 9.7 GRB 120 125 15 GRB 125 130 8.1 GRB 125 130 9.7 GRB 125 130 15 GRB 130 135 9.7 GRB 165 170 9.7 GRB 165 170 15 GRB 170 175 9.7 GRB 170 175 15 GRB 175 180 9.7 GRB 175 180 15 GRB 180 185 9.7 GRB 180 185 15 GRB 185 190 9.7 GRB 185 190 15 GRB 190 195 15 GRB 195 200 15 GRB 130 135 15 GRB 135 140 9.7 GRB 135 140 15 GRB 140 145 9.7 GRB 140 145 15 GRB 145 150 9.7 GRB 145 150 15 GRB 150 155 9.7 GRB 150 155 15 GRB 155 160 9.7 GRB 155 160 15 GRB 160 165 9.7 GRB 160 165 15
