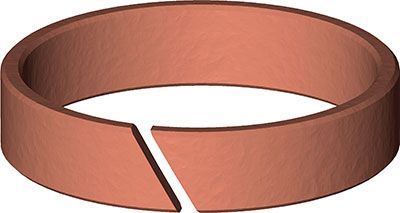

GRF

The Aston Seals GRF type guide rings have been developed to substitute traditional bronze guides in hydraulic cylinders. They guide the rod or the piston and prevent metallic contact with the cylinder when radial forces act perpendicular to the direction of movement.
Since GRF guide rings are machined from tube, the thickness can be very precise for high guiding performance.
The compound used for these guides is a cotton fabric bound with thermosetting phenolic resin characterized by excellent heavy loads resistance, rigidity, hardness and high service temperature.

  • Excellent resistance to heavy loads
  • High precision of guiding
  • Good resistance to “diesel effect”
  • Extended service life
  • Dimension suitable for both rod and piston
  • Simple design of groove and assembly
  • Low friction
  • Good mechanical stability at high temperature
  • Easy installation without expensive auxiliaries

GRF Seal Model

GRF 20 25 9.7 GRF 25 30 9.7 GRF 27 32 9.7 GRF 30 35 9.7 GRF 35 40 9.7 GRF 36 41 9.7 GRF 36 41 15 GRF 37 42 9.7 GRF 40 45 9.7 GRF 45 50 9.7 GRF 50 55 9.7 GRF 50 55 15 GRF 55 60 9.7 GRF 55 60 15 GRF 56 61 9.7 GRF 58 63 9.7 GRF 58 63 15 GRF 60 65 9.7 GRF 60 65 15 GRF 63 68 9.7 GRF 65 70 9.7 GRF 65 70 15 GRF 70 75 9.7 GRF 70 75 15 GRF 75 80 9.7 GRF 75 80 15 GRF 80 85 9.7 GRF 80 85 15 GRF 85 90 9.7 GRF 85 90 15 GRF 90 95 9.7 GRF 90 95 15 GRF 94 99 9.7 GRF 95 100 9.7 GRF 95 100 15 GRF 100 105 9.7 GRF 100 105 15 GRF 105 110 9.7 GRF 105 110 15 GRF 110 115 9.7 GRF 110 115 15 GRF 115 120 9.7 GRF 115 120 15 GRF 120 125 9.7 GRF 120 125 15 GRF 125 130 9.7 GRF 125 130 15 GRF 130 135 9.7 GRF 130 135 15 GRF 135 140 9.7 GRF 135 140 15 GRF 140 145 9.7 GRF 140 145 15 GRF 145 150 9.7 GRF 145 150 15 GRF 150 155 9.7 GRF 150 155 15 GRF 155 160 9.7 GRF 155 160 15 GRF 160 165 9.7 GRF 160 165 15 GRF 165 170 15 GRF 170 175 9.7 GRF 170 175 15 GRF 175 180 9.7 GRF 175 180 15 GRF 180 185 9.7 GRF 180 185 15 GRF 185 190 9.7 GRF 185 190 15 GRF 190 195 15 GRF 195 200 9.7 GRF 195 200 15 GRF 200 205 15 GRF 240 245 15 GRF 255 260 15
