GUA-RING 01

The GUA-RING series have been developed and manufactured to better service our clientel with new technology that has reduced seal costs, longer service life

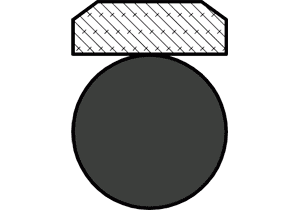

for all cases where closed housing groove application is present. Designed and particuarly indicated for hydraulic cylinders, both simple and double-acting, in pumps, press machines and earth moving equipment where demands of low friction, small working spaces and low costs are necessary these characteristics substitute actual part in use which normally have short service life. Slide ring seals GUA-RING are available in two versions clearly stated as type 01 (piston application) and type 02 (rod application) and are composed of two separate parts. The slide ring available in special material composition which offers excellent sealing, low friction and high wear resistance to corosion and an energizing elastomeric part TECNORING in synthetic rubber which works as an radial
sealing force.

Technical info:

  • Max.Pressure 700 bar
  • Speed: 12 m/s
  • Temperature °C: -30 +200
  • Material: PTFE + NBR
