KPD

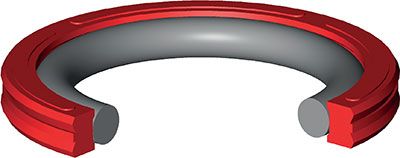

The piston seal type Aston Seals KPD is composed of:

  • A dynamic seal element which assures exceptional high sealing performance. Two compact and small seal edges ensure perfect fluid control and concentrate the load against the dynamic surface. The cavity between the two external seal edges keeps a small quantity of fluid which reduces friction and wear. Side grooves ensure that pressure loads the energizing O-Ring in all work conditions
  • A standard size O-Ring with low permanent deformation as energizing component on the static side
  • High sealing performance at low pressure
  • Excellent wear-resistance
  • Space-saving construction
  • Can also work for single action
  • Extended service life
  • Simple groove design
  • Low cost solution
  • High resistance against extrusion
  • Good temperature resistance
  • Easy installation on a solid piston

KPD Seal Model

KPD 15 7.5 3.2 KPD 16 8.5 3.2 KPD 16 11.1 2.2 KPD 18 10.5 3.2 KPD 20 12.5 3.2 KPD 22 14.5 3.2 KPD 25 14 4.2 KPD 25 17.5 3.2 KPD 30 22.5 3.2 KPD 30 25.1 2.2 KPD 32 21 4.2 KPD 32 24.5 3.2 KPD 35 24 4.2 KPD 35 27.5 3.2 KPD 36 28.5 3.2 KPD 38 30.5 3.2 KPD 40 24.5 6.3 KPD 40 29 4.2 KPD 40 32.5 3.2 KPD 42 31 4.2 KPD 45 29.5 6.3 KPD 45 34 4.2 KPD 48 37 4.2 KPD 49 38 4.2 KPD 50 34.5 6.3 KPD 50 39 4.2 KPD 52 36.5 6.3 KPD 54 43 4.2 KPD 55 39.5 6.3 KPD 55 44 4.2 KPD 57.16 47.6 4.8 KPD 57 46 4.2 KPD 60 44.5 6.3 KPD 60 49 4.2 KPD 63 47.5 6.3 KPD 63 52 4.2 KPD 65 49.5 6.3 KPD 65 54 4.2 KPD 70 54.5 6.3 KPD 70 59 4.2 KPD 75 59.5 6.3 KPD 75 64 4.2 KPD 76.2 62.53 7.18 KPD 80 64.5 6.3 KPD 80 69 4.2 KPD 85 69.5 6.3 KPD 88 72.5 6.3 KPD 90 69 8.1 KPD 90 74.5 6.3 KPD 90 79 4.2 KPD 95 79.5 6.3 KPD 100 84.5 6.3 KPD 105 89.5 6.3 KPD 110 94.5 6.3 KPD 115 94 8.1 KPD 115 99.5 6.3 KPD 120 104.5 6.3 KPD 125 109.5 6.3 KPD 130 114.5 6.3 KPD 140 119 8.1 KPD 140 124.5 6.3 KPD 150 129 8.1 KPD 160 139 8.1 KPD 170 149 8.1 KPD 180 159 8.1 KPD 200 179 8.1 KPD 220 199 8.1 KPD 250 229 8.1
