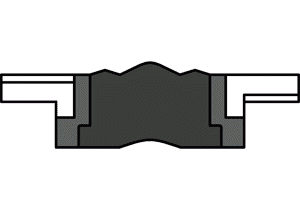

TPL

A double-acting seal for one piece piston, the TPL represents an inexpensive sealing solution that guarantees excellent resistance where medium pressure is
present. Composed of five elements: central part in NBR, two support rings in thermoplastic material, and two acetalic guide rings, his unique combination of material in which the seal is produced guarantee low friction where high pressure is present. In the presence of harsh working conditions this sealing element is also available in special material able to withstand high temperatures.

Technical info:

  • Max. Pressure 300 bar
  • Speed: 0,5 m/s
  • Temperature °C: -30 +110
  • Material: NBR + POM + PET
