YAB

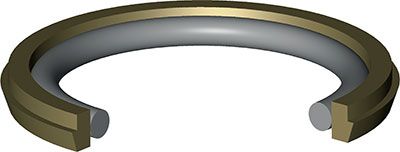

The piston seal type Aston Seals YAB is composed of:

  • A dynamic seal element which assures exceptional low friction and high speed performance, high compatibility with nearly all media due to the chemical resistance which exceeds that of all other thermoplastics and elastomers.
  • A standard size O-Ring with low permanent deformation as energizing component on the static side
  • Low static and dynamic friction
  • High speed allowed
  • No tendency of stick-slip
  • Space-saving construction and simple groove design
  • High compatibility with nearly all fluids (with the right choice of O-Ring material)
  • High resistance agains textrusion
  • High temperature resistance

YAB Seal Model

YAB 8 3.1 2.2 YAB 10 5.1 2.2 YAB 12 7.1 2.2 YAB 15 10.1 2.2 YAB 16 11.1 2.2 YAB 18 10.7 3.2 YAB 20 12.7 3.2 YAB 22 14.7 3.2 YAB 24 16.7 3.2 YAB 25 17.7 3.2 YAB 28 17.3 4.2 YAB 30 19.3 4.2 YAB 32 21.3 4.2 YAB 35 24.3 4.2 YAB 36 25.3 4.2 YAB 38 27.3 4.2 YAB 39 28.3 4.2 YAB 40 29.3 4.2 YAB 42 31.3 4.2 YAB 45 34.3 4.2 YAB 48 37.3 4.2 YAB 50 39.3 4.2 YAB 52 41.3 4.2 YAB 55 44.3 4.2 YAB 57 46.3 4.2 YAB 60 44.9 6.3 YAB 63 47.9 6.3 YAB 64 48.9 6.3 YAB 65 49.9 6.3 YAB 70 54.9 6.3 YAB 75 59.9 6.3 YAB 80 64.9 6.3 YAB 85 69.9 6.3 YAB 89 73.9 6.3 YAB 90 74.9 6.3 YAB 95 79.9 6.3 YAB 100 84.9 6.3 YAB 105 89.9 6.3 YAB 110 94.9 6.3 YAB 115 99.9 6.3 YAB 120 104.9 6.3 YAB 125 109.9 6.3 YAB 130 114.9 6.3 YAB 132 116.9 6.3 YAB 133 117.9 6.3 YAB 135 119.9 6.3 YAB 140 124.9 6.3 YAB 145 129.9 6.3 YAB 150 134.9 6.3 YAB 154 138.9 6.3 YAB 155 139.9 6.3 YAB 160 144.9 6.3 YAB 165 149.9 6.3 YAB 170 154.9 6.3 YAB 175 159.9 6.3 YAB 180 164.9 6.3 YAB 185 169.9 6.3 YAB 190 174.9 6.3 YAB 200 179.5 8.1 YAB 210 189.5 8.1 YAB 220 199.5 8.1 YAB 230 209.5 8.1 YAB 240 219.5 8.1 YAB 250 229.5 8.1 YAB 260 236 8.1 YAB 270 246 8.1 YAB 280 256 8.1 YAB 290 266 8.1 YAB 300 276 8.1 YAB 310 286 8.1 YAB 320 296 8.1 YAB 330 306 8.1 YAB 340 316 8.1 YAB 350 326 8.1 YAB 360 336 8.1 YAB 370 346 8.1 YAB 380 356 8.1 YAB 390 366 8.1 YAB 400 376 8.1 YAB 410 386 8.1 YAB 420 396 8.1 YAB 430 406 8.1 YAB 440 416 8.1 YAB 450 426 8.1 YAB 460 436 8.1 YAB 470 446 8.1 YAB 480 456 8.1 YAB 490 466 8.1 YAB 500 476 8.1
