YP

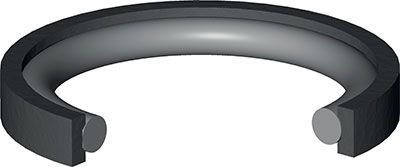

The piston seal type Aston Seals YP, mainly suitable for low pressure conditions or pneumatic  eld, is composed of:

  • A dynamic seal element which assures exceptional low friction and high speed performance, high compatibility with nearly all media due to the chemical resistance which exceeds that of all other thermoplastics and elastomers.
  • A standard size O-Ring with low permanent deformation as energizing component on the static side
  • Low static and dynamic friction,also without lubrication
  • No tendency of stick-slip
  • Space-saving construction and simple groove design
  • Good resistance against extrusion
  • High compatibility with nearly all fuids (with the right choice of O-Ring material)
  • High speed allowed
  • High temperature resistance

YP Seal Model

YP 218-38 YP 219-40 YP 220-42 YP 221-43 YP 222-45 YP 325-50 YP 326-52 YP 327-55 YP 328-58 YP 329-61 YP 330-65 YP 331-68 YP 332-70 YP 333-75 YP 334-77 YP 335-80 YP 336-85 YP 337-86 YP 338-90 YP 339-92 YP 340-95 YP 341-100 YP 004-6 YP 006-7 YP 008-8 YP 009-9 YP 010-10 YP 011-11 YP 012-13 YP 110-15 YP 111-16 YP 112-18 YP 113-20 YP 114-21 YP 115-22 YP 116-25 YP 210-26 YP 211-28 YP 212-29 YP 213-30 YP 214-32 YP 215-34 YP 216-35 YP 217-37 YP 342-102 YP 343-105 YP 344-108 YP 345-111 YP 346-115 YP 347-118 YP 348-121 YP 349-125 YP 425-127 YP 426-130 YP 427-135 YP 428-137 YP 429-140 YP 430-143 YP 431-146 YP 432-150 YP 433-153 YP 434-156 YP 435-160 YP 436-162 YP 437-165 YP 438-172 YP 682-275 YP 450-280 YP 684-286 YP 451-295 YP 686-300 YP 452-305 YP 688-315 YP 453-320 YP 454-330 YP 455-345 YP 456-355 YP 457-370 YP 458-380 YP 459-395 YP 460-410 YP 439-178 YP 440-184 YP 441-191 YP 442-197 YP 443-203 YP 444-210 YP 445-216 YP 674-222 YP 446-230 YP 676-235 YP 447-242 YP 678-250 YP 448-255 YP 680-260 YP 449-270
