AD

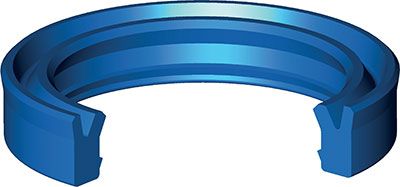

The rod seal type Aston Seals AD assures a good reaction against shock pressure peaks and low friction in the low pressure range.
The asymmetric lips are designed to differentiate the behaviour of the lips on the static and dynamic surfaces: the static lip is flexible and more sensitive to pressure fluctuations; the dynamic lip is shorter and stronger to concentrate load against the dynamic surface.
Wear and dry run are largely prevented by additional lubricant retained within the gap created by the secondary lip.
The material used to produce this seal is a polyurethane compound that ensures excellent properties on wear-resistance, extended service life and resistance against extrusion.

  • Extended service life
  • High resistance against extrusion
  • Excellent wear-resistance
  • Good temperature resistance
  • Insensitive to structural deflections
  • Easy installation without expensive auxiliaries

AD Seal Model

AD 30 40.7 3.7 AD 30 42 11 AD 32 40 6.5 AD 32 41.53 7.9 AD 32 42 7.3 AD 32 45 10 AD 35 43 7 AD 35 45.7 3.7 AD 36 44 6 AD 36 46 7 AD 36 46 10 AD 38 48 8 AD 40 48 5.8 AD 40 49.52 9.5 AD 40 50 6 AD 40 50 7 AD 40 50 8 AD 40 50 10 AD 40 52 11 AD 40 55 10 AD 40 55.1 5.8 AD 42 50 5.8 AD 45 53 5.8 AD 45 55 6 AD 5 10 3.5 AD 6 11 3.5 AD 7 12 4 AD 12 22 8 AD 16 24 5.8 AD 16 24 6 AD 20 26 5 AD 20 28 5.7 AD 20 28 6 AD 22 28 5.8 AD 22 30 5.8 AD 22 30 6 AD 25 33 5.5 AD 25 33 5.8 AD 25 33 6.5 AD 25 35 7 AD 26 36 10 AD 28 38 7.3 AD 28 38.7 3.7 AD 30 38 5.8 AD 30 40 6 AD 30 40 7 AD 30 40 7.3 AD 30 40 10 AD 45 55 7 AD 45 55 10 AD 45 60 11.5 AD 45 60.1 5.8 AD 50 57 9 AD 50 57 10 AD 50 60 7 AD 50 60 10 AD 50 65 10 AD 50 65.1 5.8 AD 55 63 11.5 AD 55 63.15 13 AD 55 65 8.5 AD 55 65 10 AD 56 71 8.5 AD 56 71 11.5 AD 60 68 8 AD 60 69.3 5.5 AD 60 70 7 AD 60 70 14 AD 60 75 12 AD 63 73 6 AD 63 78 10 AD 63 78 11.5 AD 90 100 11.5 AD 90 105 11.5 AD 90 110 14 AD 95 103 11.5 AD 99 109 14 AD 100 110 10 AD 100 110 11.5 AD 100 115 12 AD 100 120 12 AD 105 113 11.5 AD 105 113.15 13 AD 105 115 11.5 AD 105 120 10 AD 110 120 10.5 AD 115 123 11.5 AD 115 125 12 AD 118 133 9.8 AD 120 130 14 AD 125 133 11.5 AD 65 73 9 AD 65 73 11.5 AD 65 75 6 AD 65 77 9 AD 65 80 12 AD 70 80 11.5 AD 70 80 12 AD 70 85 11.5 AD 75 83 11.5 AD 75 85 11.5 AD 78 86.15 13 AD 78 88 14 AD 80 90 7 AD 80 90 8 AD 80 95 11.5 AD 85 93 10 AD 85 93 11.5 AD 88.9 101.6 9.5 AD 90 98 11.5 AD 125 135 11 AD 135 143 11.5 AD 135 150 11.5 AD 141 151 14 AD 145 160 12 AD 150 160 11 AD 155 163 11.5 AD 160 170 11.5 AD 162 172 14 AD 175 185 11 AD 180 190 10 AD 183 193 14 AD 207 217 14 AD 1250 1750 0250 AD 1500 2000 0335 AD 3500 4250 0620
