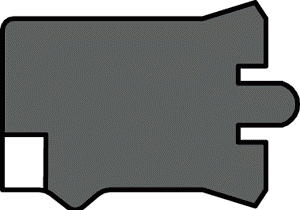

TTH

The TTH, designed for rod application is produced in Polyurethane “Tecnolan” presenting characteristics such as high elasticity, low deformation and excellent resistance to abrasion. The TTH seal boasts an exceptional quality performance when faced with working conditions where high pressure, extrusion and wide range mechanical coupling occur.

Technical info:

  • Max.Pressure 450 bar
  • Speed: 0,5 m/s
  • Temperature °C: -40 +110
  • Material: PU + POM
