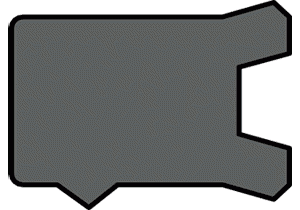

The TTS is indicated as a rod seal and produced in Polyurethane “Tecnolan”; this sealing element meets the demanding requirements that are needed from this particular seal such as high elasticity, low deformation and excellent abrasion resistance. The seal design allows the TTS to achieve high performance levels necessary to operate in the hydraulic cylinder as the application varies. The TTS/L version is a double lip rod seal designed for applications were high friction occurs (such as telescopic cylinders) and the TTS/AI has adapted an anti-extrusion ring that maintains operating levels when extreme conditions of extrusion, high pressure and mechanical coupling are particularly aggressive.

Technical info:

  • Max.Pressure 400 bar
  • Speed: 0,5 m/s
  • Temperature °C: -40 +110
  • Material: PU
