XAB

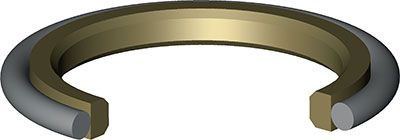

The rod seal type Aston Seals XAB is composed of:

  • A dynamic seal element which assures exceptional low friction and high speed performance, as well as high compatibility with nearly all media due to the chemical resistance which exceeds that of all other thermoplastics and elastomers.
  • A standard size O-Ring with low permanent deformation as energizing component on the static side
  • Low static and dynamic friction
  • High speed allowed
  • No tendency of stick-slip
  • Space-saving construction and simple groove design
  • High compatibility with nearly all fluids (with the right choice of O-Ring material)
  • High resistance against extrusion
  • High temperature resistance

XAB Seal Model

XAB 170 185.1 6.3 XAB 175 190.1 6.3 XAB 180 195.1 6.3 XAB 185 200.1 6.3 XAB 190 205.1 6.3 XAB 195 210.1 6.3 XAB 200 220.5 8.1 XAB 210 230.5 8.1 XAB 220 240.5 8.1 XAB 225 245.5 8.1 XAB 230 250.5 8.1 XAB 240 260.5 8.1 XAB 250 270.5 8.1 XAB 260 284.0 8.1 XAB 270 294.0 8.1 XAB 280 304.0 8.1 XAB 290 314.0 8.1 XAB 300 324.0 8.1 XAB 310 334.0 8.1 XAB 320 344.0 8.1 XAB 330 354.0 8.1 XAB 340 364.0 8.1 XAB 350 374.0 8.1 XAB 360 384.0 8.1 XAB 4 8.9 2.2 XAB 5 9.9 2.2 XAB 7 11.9 2.2 XAB 8 15.3 3.2 XAB 10 17.3 3.2 XAB 12 19.3 3.2 XAB 14 21.3 3.2 XAB 15 22.3 3.2 XAB 16 23.3 3.2 XAB 17 24.3 3.2 XAB 18 25.3 3.2 XAB 20 30.7 4.2 XAB 22 32.7 4.2 XAB 24 34.7 4.2 XAB 25 35.7 4.2 XAB 26 36.7 4.2 XAB 28 38.7 4.2 XAB 30 40.7 4.2 XAB 32 42.7 4.2 XAB 35 45.7 4.2 XAB 36 46.7 4.2 XAB 37 47.7 4.2 XAB 38 53.1 6.3 XAB 40 55.1 6.3 XAB 42 57.1 6.3 XAB 45 60.1 6.3 XAB 48 63.1 6.3 XAB 50 65.1 6.3 XAB 52 67.1 6.3 XAB 55 70.1 6.3 XAB 58 73.1 6.3 XAB 60 75.1 6.3 XAB 65 80.1 6.3 XAB 70 85.1 6.3 XAB 75 90.1 6.3 XAB 80 95.1 6.3 XAB 85 100.1 6.3 XAB 90 105.1 6.3 XAB 95 110.1 6.3 XAB 100 115.1 6.3 XAB 110 125.1 6.3 XAB 120 135.1 6.3 XAB 125 140.1 6.3 XAB 130 145.1 6.3 XAB 140 155.1 6.3 XAB 150 165.1 6.3 XAB 155 170.1 6.3 XAB 160 175.1 6.3 XAB 370 394.0 8.1 XAB 380 404.0 8.1 XAB 390 414.0 8.1 XAB 400 424.0 8.1 XAB 420 444.0 8.1 XAB 440 464.0 8.1 XAB 450 474.0 8.1 XAB 460 484.0 8.1 XAB 480 504.0 8.1 XAB 500 524.0 8.1
