XC

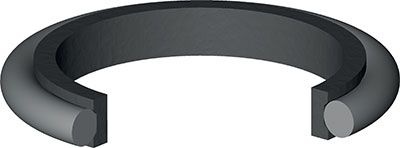

The rod seal type Aston Seals XC, mainly suitable for low pressure conditions or pneumatic  eld, is composed of:

  • A dynamic seal element which assures exceptional low friction and high speed performance, as well as high compatibility with nearly all media due to the chemical resistance which exceeds that of all other thermoplastics and elastomers.
  • A standard size O-Ring with low permanent deformation as energizing component on the static side
  • Low static and dynamic friction, also without lubrication
  • No tendency of stick-slip
  • Space-saving construction and simple groove design
  • Good resistance against extrusion
  • High compatibility with nearly all fluids (with the right choice of O-Ring material)
  • High speed allowed
  • High temperature resistance

XC Seal Model

XC 007-3 XC 008-4 XC 009-5 XC 010-6 XC 011-8 XC 012-10 XC 110-9 XC 111-11 XC 112-12 XC 113-14 XC 114-15 XC 115-17 XC 210-19 XC 211-20 XC 212-22 XC 213-23 XC 214-25 XC 215-27 XC 216-28 XC 217-30 XC 218-31 XC 219-33 XC 220-35 XC 221-36 XC 325-38 XC 326-40 XC 327-45 XC 328-47 XC 329-50 XC 330-53 XC 331-57 XC 332-60 XC 333-63 XC 334-66 XC 335-70 XC 336-73 XC 337-75 XC 338-80 XC 339-82 XC 340-85 XC 341-90 XC 342-92 XC 343-95 XC 344-98 XC 345-100 XC 346-104 XC 347-107 XC 348-111 XC 425-114 XC 426-117 XC 427-120 XC 428-123 XC 429-126 XC 430-130 XC 431-133 XC 432-136 XC 433-139 XC 434-142 XC 435-145 XC 436-149 XC 437-152 XC 438-158 XC 439-165 XC 440-170 XC 441-178 XC 442-184 XC 443-190 XC 444-196 XC 445-203 XC 674-210 XC 446-215 XC 676-222 XC 447-230 XC 678-235 XC 448-240 XC 680-248 XC 449-255 XC 682-260 XC 450-265 XC 684-273 XC 451-280 XC 686-285 XC 452-292 XC 688-300 XC 453-305 XC 454-318 XC 455-330 XC 456-342 XC 457-355 XC 458-370 XC 459-380 XC 460-393
