XL

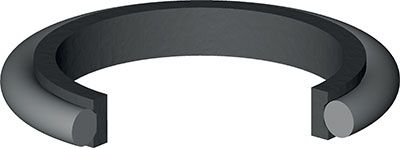

The rod seal type Aston Seals XL, mainly suitable for low pressure conditions or pneumatic  eld, is composed of:

  • A dynamic seal element which assures exceptional low friction and high speed performance, as well as high compatibility with nearly all media due to the chemical resistance which exceeds that of all other thermoplastics and elastomers.
  • A standard size O-Ring with low permanent deformation as energizing component on the static side
  • Low static and dynamic friction, also without lubrication
  • No tendency of stick-slip
  • Space-saving construction and simple groove design
  • Good resistance against extrusion
  • High compatibility with nearly all fluids (with the right choice of O-Ring material)
  • High speed allowed
  • High temperature resistance

XL Seal Model

XL 610-5 XL 011-6 XL 012-8 XL 614-10 XL 113-12 XL 114-14 XL 809-15 XL 617-16 XL 116-18 XL 118-20 XL 119-22 XL 121-25 XL 217-28 XL 218-30 XL 219-32 XL 221-35 XL 824-38 XL 825-40 XL 224-42 XL 225-45 XL 329-50 XL 331-55 XL 331-56 XL 333-60 XL 334-63 XL 334-65 XL 336-70 XL 338-75 XL 339-80 XL 341-85 XL 342-90 XL 344-95 XL 345-100 XL 348-110 XL 428-120 XL 429-125 XL 431-130 XL 434-140 XL 437-150 XL 439-160 XL 878-170 XL 442-180 XL 884-190 XL 445-200 XL 449-250 XL 686-280 XL 453-300
