XRB

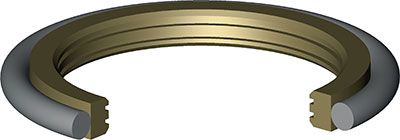

The rod seal type Aston Seals XRB, used preferably for hydraulic joints and rotary joints, is composed of:

  • A dynamic seal element which assures exceptional low friction and high speed performance, as well as high compatibility with nearly all media due to the chemical resistance which exceeds that of all other thermoplastics and elastomers.
  • A standard size O-Ring with low permanent deformation as energizing component on the static side
  • Low static and dynamic friction
  • No tendency of stick-slip
  • Space-saving construction and simple groove design
  • High resistance against extrusion
  • High compatibility with nearly all fluids (with the right choice of O-Ring material)
  • High speed allowed
  • High temperature resistance
  • Can also work for single action

XRB Seal Model

XRB 6 10.9 2.2 XRB 8 12.9 2.2 XRB 10 14.9 2.2 XRB 12 16.9 2.2 XRB 14 18.9 2.2 XRB 15 19.9 2.2 XRB 16 20.9 2.2 XRB 18 22.9 2.2 XRB 20 27.5 3.2 XRB 22 29.5 3.2 XRB 25 32.5 3.2 XRB 28 35.5 3.2 XRB 30 37.5 3.2 XRB 32 39.5 3.2 XRB 35 42.5 3.2 XRB 36 43.5 3.2 XRB 40 51 4.2 XRB 42 53 4.2 XRB 45 56 4.2 XRB 48 59 4.2 XRB 50 61 4.2 XRB 52 63 4.2 XRB 55 66 4.2 XRB 56 67 4.2 XRB 60 71 4.2 XRB 63 74 4.2 XRB 65 76 4.2 XRB 70 81 4.2 XRB 75 86 4.2 XRB 80 91 4.2 XRB 85 96 4.2 XRB 90 101 4.2 XRB 95 106 4.2 XRB 100 111 4.2 XRB 105 116 4.2 XRB 110 121 4.2 XRB 115 126 4.2 XRB 120 131 4.2 XRB 125 136 4.2 XRB 130 141 4.2 XRB 135 146 4.2 XRB 140 151 4.2 XRB 145 156 4.2 XRB 150 161 4.2 XRB 160 171 4.2 XRB 170 181 4.2 XRB 180 191 4.2 XRB 190 201 4.2 XRB 200 215.5 6.3 XRB 210 225.5 6.3 XRB 220 235.5 6.3 XRB 240 255.5 6.3 XRB 250 265.5 6.3 XRB 280 301 8.1 XRB 300 321 8.1 XRB 320 341 8.1 XRB 350 371 8.1 XRB 360 381 8.1 XRB 400 421 8.1 XRB 420 441 8.1 XRB 450 471 8.1 XRB 480 501 8.1 XRB 500 521 8.1 XRB 520 541 8.1 XRB 550 571 8.1 XRB 600 621 8.1 XRB 650 678 9.5 XRB 700 728 9.5 XRB 750 778 9.5
