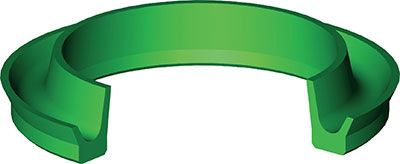

The function of the Aston Seals SAW wiper ring is to prevent introduction of dust, dirt, foreign matter and heavily deposited ice and mud into the system.
This is achieved by a special wiper lip which produces a very effective cleaning action, prevents the development of scores, protects the guiding parts and extends the service life of the axial moving rod seals.
This type of wiper is designed to snap  fit into its housing. To work properly it is important that its assembly is done with care.
The material used to produce this wiper is a special polyester resin that ensures excellent properties in case heavy applications, an increased wear-resistance and an extended service life.

  • Designed to snap  t into its housing
  • Suitable for medium-heavy applications
  • Extended service life
  • Low cost solution
  • Excellent wear-resistance
  • Space-saving construction
  • Easy installation without expensive auxiliaries

SAW Seal Model

SAW 16 SAW 18 SAW 20 SAW 22 SAW 25 SAW 28 SAW 30 SAW 32 SAW 36 SAW 40 SAW 45 SAW 50 SAW 55 SAW 56 SAW 60 SAW 63 SAW 65 SAW 70 SAW 80 SAW 90 SAW 100

Hydraulic Systems and Components
