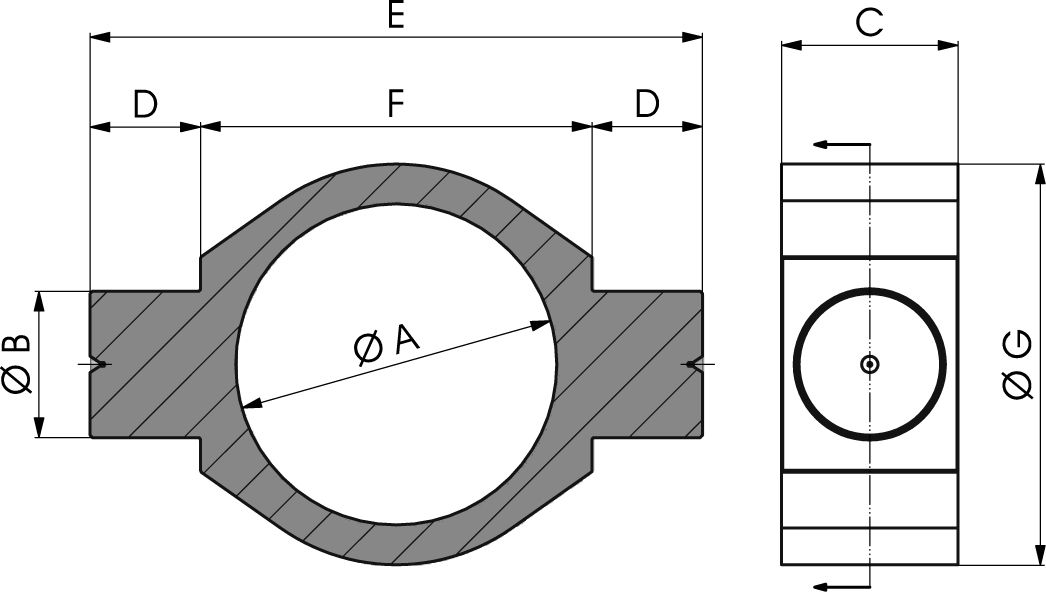

Tilting collar with pivots
Production material: Steel S355JR
| COD. | A | B | C | D | E | F | G | Kg |
|---|---|---|---|---|---|---|---|---|
| NBPEBAS040 | 40 | 15 | 25 | 17.5 | 95 | 60 | 52 | 0,23 |
| NBPEBAS050 | 50 | 20 | 30 | 20 | 110 | 70 | 65 | 0,49 |
| NBPEBAS060 | 60 | 25 | 35 | 25 | 130 | 80 | 75 | 0,74 |
| NBPEBAS070 | 70 | 30 | 45 | 30 | 160 | 100 | 90 | 1,55 |
| NBPEBAS080 | 80 | 35 | 50 | 35 | 180 | 110 | 100 | 2,04 |
| NBPEBAS092 | 92 | 40 | 55 | 40 | 195 | 115 | 115 | 2,65 |
| NBPEBAS095 | 95 | 40 | 55 | 40 | 195 | 115 | 115 | 2,39 |
| NBPEBAS105 | 105 | 45 | 60 | 45 | 215 | 125 | 125 | 3,08 |
| NBPEBAS115 | 115 | 50 | 70 | 50 | 245 | 145 | 145 | 5,45 |
| NBPEBAS140 | 140 | 60 | 80 | 60 | 290 | 170 | 170 | 7,87 |
| NBPEBAS160 | 160 | 70 | 88 | 55 | 305 | 195 | 187 | 10,14 |
| NBPEBAS180 | 180 | 80 | 105 | 60 | 350 | 230 | 225 | 19,23 |
