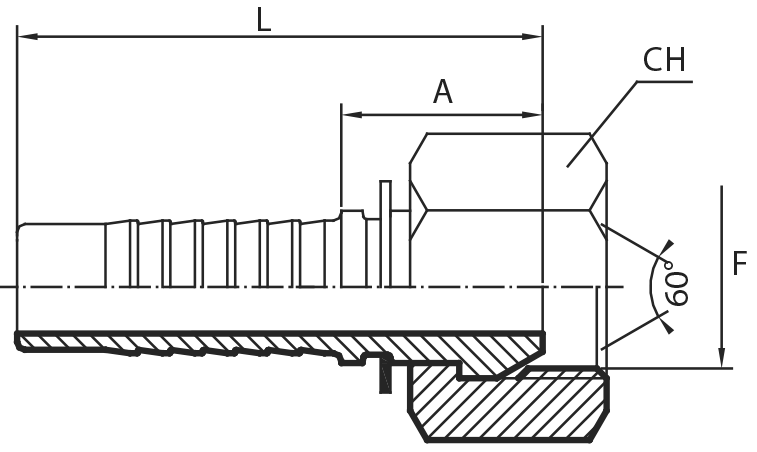

BSPP straight Female 60° cone (slip-on nut)

BSPP straight Female 60° cone (slip-on nut)

Get your quote for BSPP straight Female 60° cone (slip-on nut)

CODE DN INCHES DIAMETER D L
FDG0302SF 5 3/16" 3 1/8" 28
FDG0304SF 5 3/16" 3 1/4" 19
FDG0404SF 6 1/4" 4 1/4" 19
FDG0406SF 6 1/4" 4 3/8" 19
FDG0506SF 8 5/16" 5 3/8" 19
FDG0606SF 10 3/8" 6 3/8" 19
FDG0608SF 10 3/8" 6 1/2" 14
FDG0808SF 12 1/2" 8 1/2" 14

* The figures and technical data set out in the tables are only intended as approximations.
