FHR 3.000SF Rotator for loads up to 3t

  • Max load static (tension loads) : 30 KN
  • Max load dynamic (tension loads) : 15 KN
  • Torque at 25MPa : 900 Nm
  • Weight : 24 Kg
  • Recommended oilflow : 20 l/min

Applications

  • For forestry
  • For cargo and general material handing
  • For agriculture and farming
  • For road and building construction

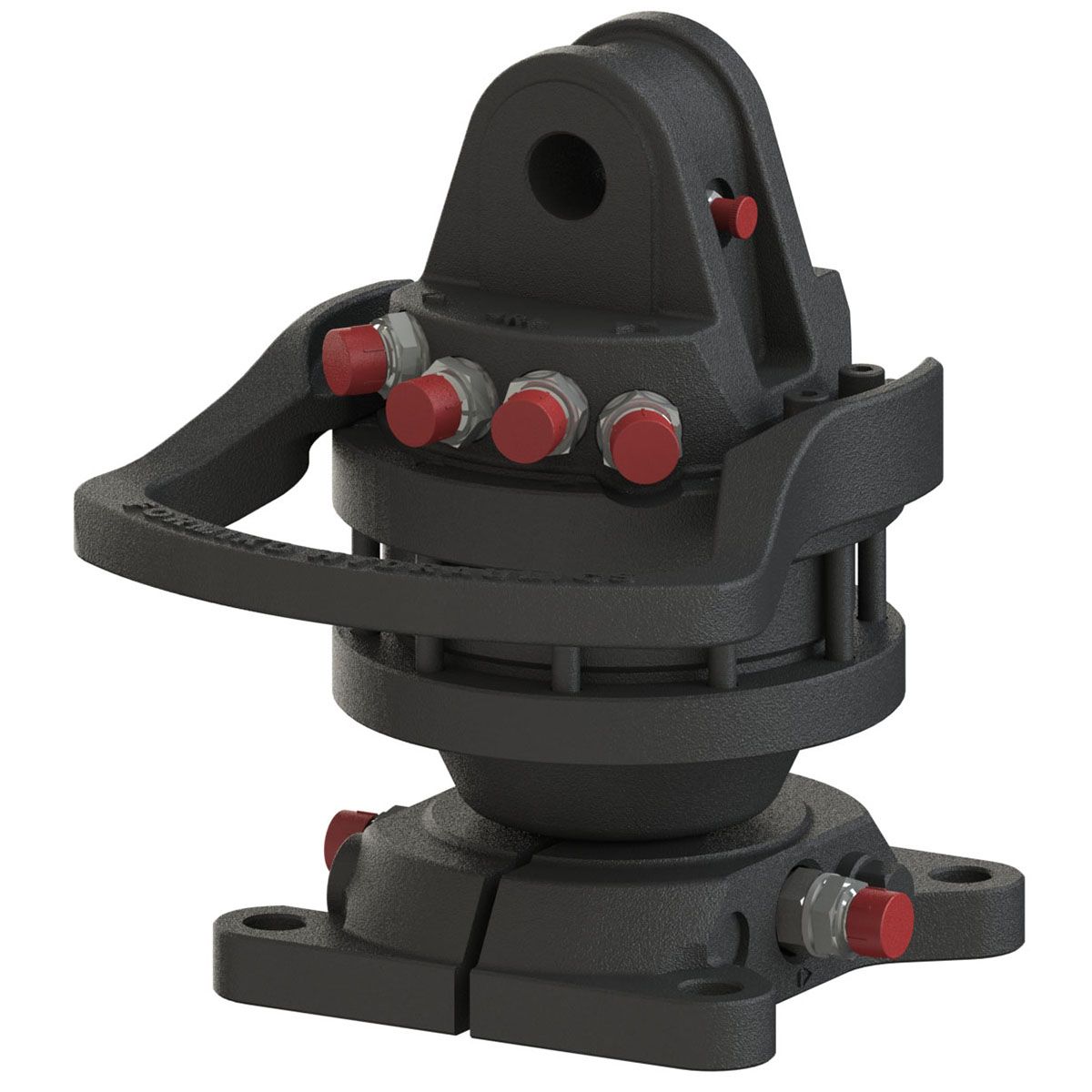

FHR 3.000SF - Rotator for loads up to 3t

Download Data Sheet


Hydraulic rotator FHR 3.000SF is cost-effective solution generally for seasonal use in forestry, agriculture, road and building construction, general cargo and material handling.

Rotator's upper mount is applied in EYE form factor of the knuckle joint. Robust and tough built to withstand even overloads. The wide of eye is common standard width 60mm and the knuckle pin diameter 25mm.
Rotator lower mount is applied in SQUARE shape FLANGE form factor to mount direct on grapple / tool surface by fixing with screws.
Rotator FHR 3.000SF based on reliable vane type hydraulic motor which delivers torque up to 900Nm at 25MPa.
Some parts in rotator are built from shock resistant and deformation resistant forged steel.
Formiko rotator FHR 3.000SF is compatible with FHL 01-A/B-60/25 and FHL 01B-A/B-60/25 series links
Rotator for shipping is packed in compact solid cardboard box with dimensions 340x230x240mm.
We providing TWO year warranty for this rotator.
