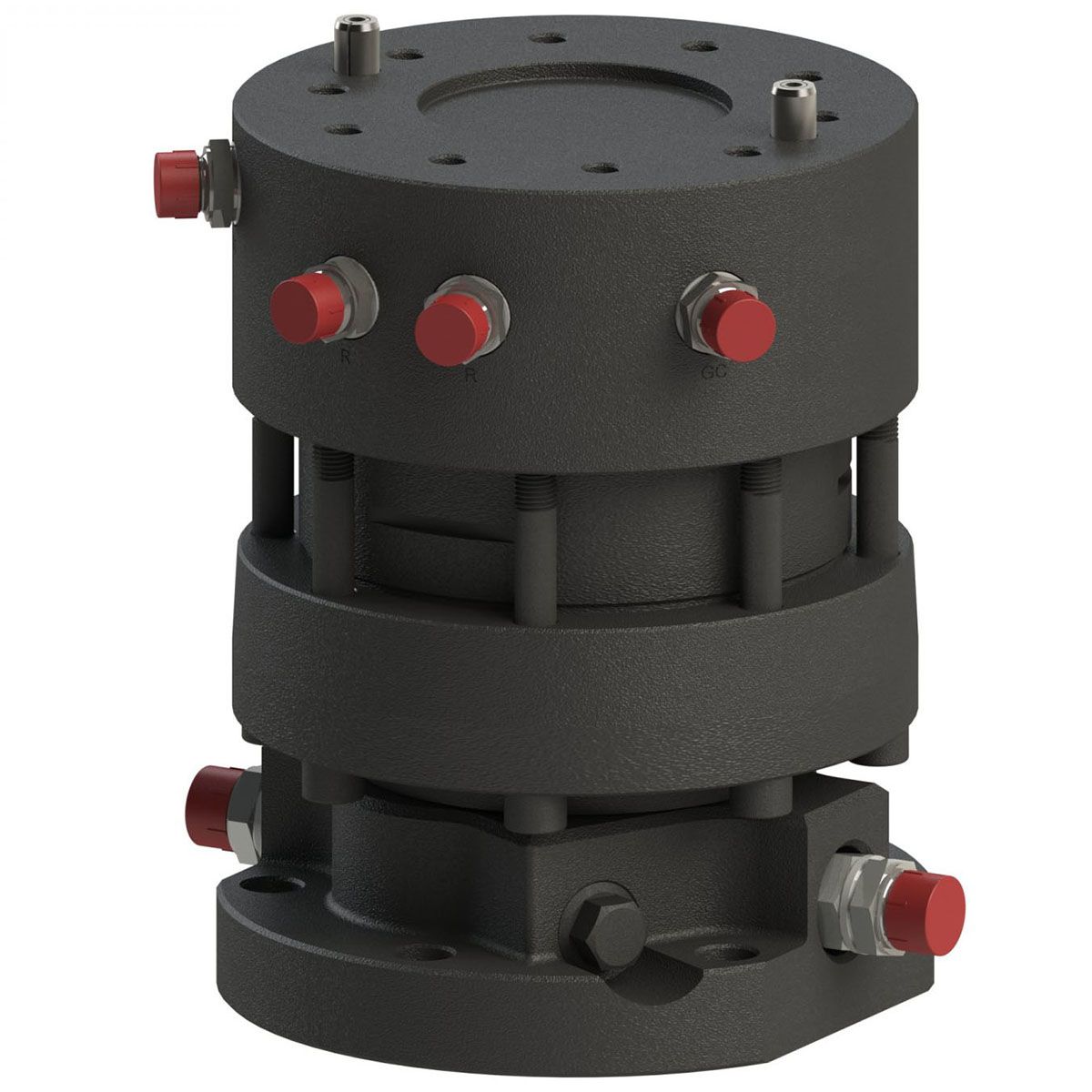

Rotator's upper mount is applied in FLANGE form factor. Rotator commonly is used for rigid mounting on the crane tip or in assembly with tilt equipment. Rotator is equipped with locating pins for ease mounting. top.flange.diameter 144mm. top.flange.screw.count 10 12 screws.
Rotator lower mount is applied in FLANGE form factor to mount direct on grapple / tool surface by fixing with screws
Rotator FHR 6FF2X based on reliable vane type hydraulic motor which delivers torque up to 1850Nm at 25MPa.
Formiko Hydraulics rotator FHR 6FF2X is equipped with double bearings to withstand both tensional and pushing loads.
Some parts in rotator are built from shock resistant and deformation resistant forged steel.
Rotator for shipping is packed in compact solid cardboard box with dimensions 400x250x250mm.
We providing TWO year warranty for this rotator.
