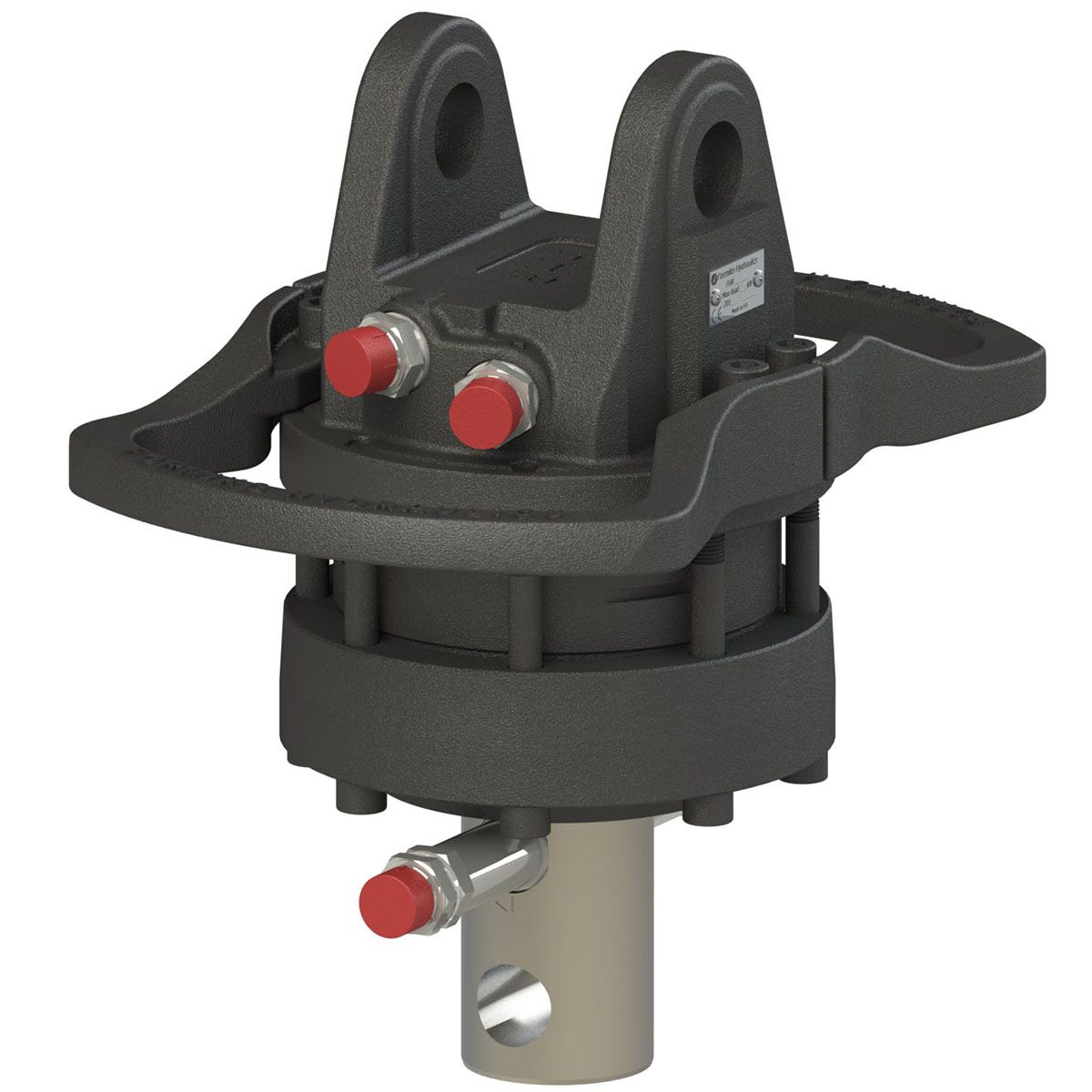

FHR 6LD2/69 Rotator for loads up to 6t

  • Max load static (tension loads) : 60 KN
  • Max load static (pushing loads) : -50 KN
  • Max load dynamic (tension loads) : 30 KN
  • Max load dynamic (pressing loads) : -25 KN
  • Torque at 25MPa : 1850 Nm
  • Weight : 39 Kg
  • Recommended oilflow : 25 l/min


  • For forestry
  • For cargo and general material handing
  • For agriculture and farming
  • For road and building construction
  • For recycling industry and earthmoving
FHR 6LD2/69 - Rotator for loads up to 6t

Download Data Sheet

Hydraulic rotator FHR 6LD2/69 is ideal for professional use in forestry, agriculture, road and building construction, recycling industry, general cargo and material handling.

Rotator's upper mount is applied in FORK form factor of the knuckle joint. Robust and tough built to withstand even overloads. The fork width (between fork ends) is common standard width 80mm and the knuckle pin diameter 35mm.
Rotator lower mount is applied in AXLE form factor to mount in grapple / tool mounting tube or adaptor and by fixing with pin. Axle (shaft) diameter is 69mm and the fixing pin (not included) diameter 30mm
Rotator FHR 6LD2/69 based on reliable vane type hydraulic motor which delivers torque up to 1850Nm at 25MPa.
Formiko Hydraulics rotator FHR 6LD2/69 is equipped with double bearings to withstand both tensional and pushing loads.
FHR 6LD2/69 is designed with opposite hydraulic channels, to ease the hose replacement in case of rupture.
Formiko rotator FHR 6LD2/69 is compatible with FHL 02 series links.
Rotator for shipping is packed in compact solid cardboard box with dimensions 400x250x250mm.
We providing TWO year warranty for this rotator.
