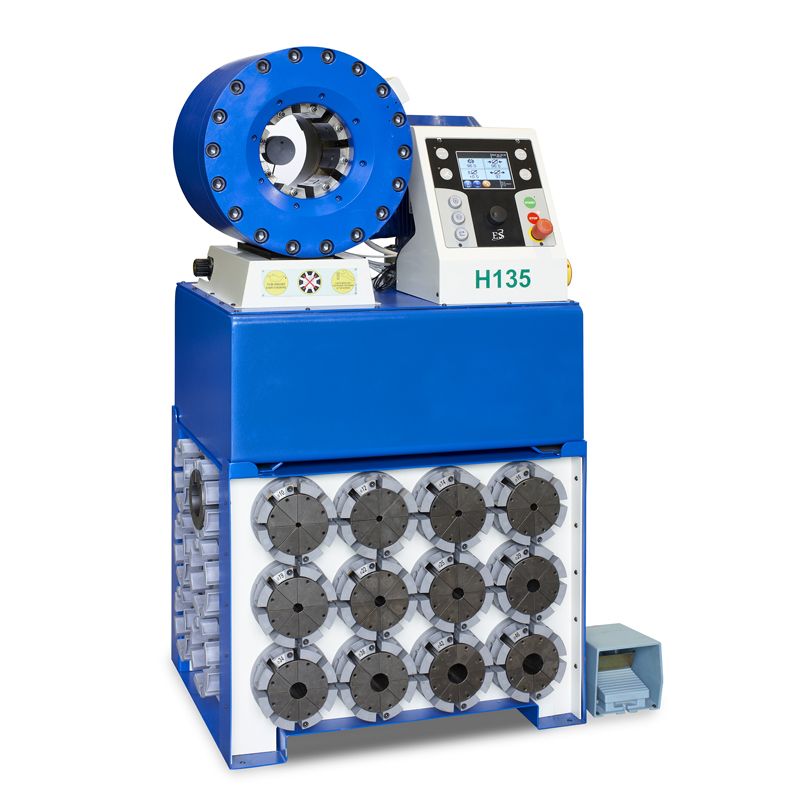

TUBOMATIC H135 ES / TUBH135ES

Tubomatic H135 ES is ideal for crimping hydraulic hoses up to 2" six spirals and up to 3" industrial hose.

Main Features

  • ideal for crimping any type of fitting;
  • ES3 Siemens PLC control with 5,7'' color touch-screen display;
  • back limit switch.

Product specifications could be modified without prior notice.

 TUBOMATIC H135 ES


CRIMPING FORCE 315 TON (345 US TONS)
6 SPIRALS 2''
INDUSTRIAL HOSE 3''
MAX Diam. 135 mm* (5.315'')
CRIMPING/HOUR 1110
DIE OPENING Ø + 43 mm (Ø + 1.693 '')
90 FITTINGS 2''
STANDARD VOLTAGE 375V-420V 50HZ 3PH
MOTOR POWER 5,5 Kw (7.5 Hp) A=10,64
DIMENSIONS L x W x H 810x750x850 mm (31.889''x29.527''x33.464'')
WEIGHT WITHOUT OIL 455 Kg (1003 Lbs)
OIL 110 lt.
ELECTRONIC CONTROL WITH TOUCH SCREEN incl.
BACK LIMIT SWITCH incl.
CRIMPING SPEED OPTIONAL
PRESSURE CONTROL SYSTEM OPTIONAL
DATA TRANSFER KIT OPTIONAL
BASE OPTIONAL
MARKING DIES OPTIONAL
SPECIAL DIES OPTIONAL
SPECIAL VOLTAGE OPTIONAL
BASE + QUICK CHANGE DIE SYSTEM OPTIONAL
QUALITY CHECK OPTIONAL
CLEANING AND MAINTENANCE KIT OPTIONAL
MULTISTEP OPTIONAL
ELECTRIC PEDAL OPTIONAL
MIRROR OPTIONAL
