SPF2/MS / SPELSPF2MS

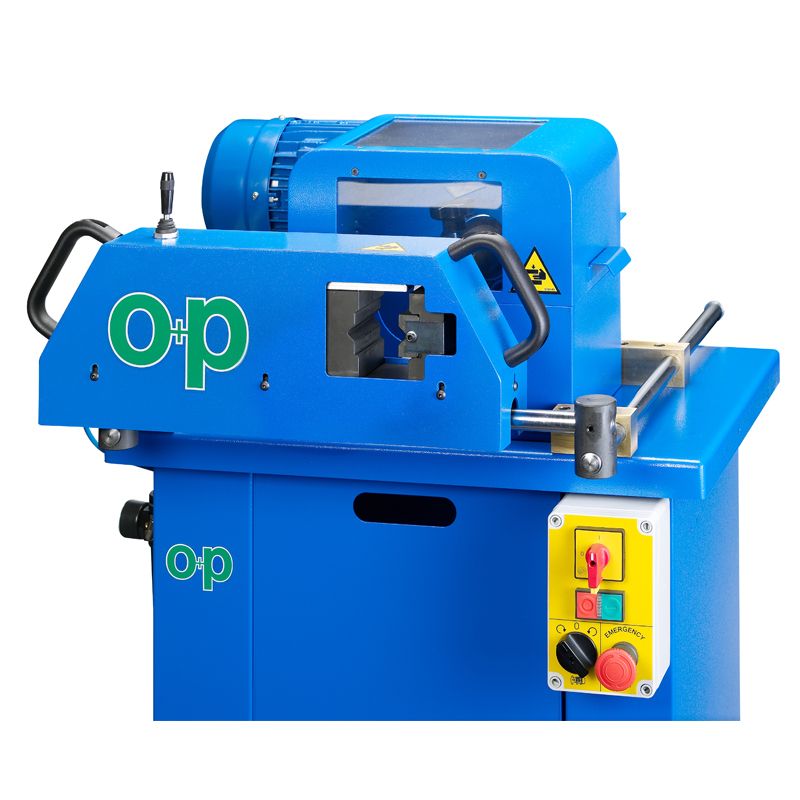

This device allows skiving the internal and external surface of hydraulic hoses up to a 2’’ diameter. SPF2/MS is provided with a fixed tool-holder spindle with a double cutter for any hose diameter. This allows considerably saving time given that one just needs to adjust the spindle upon first use without having to reset it at each operation.

Main Features

  • pedal-equipped pneumatic control;
  • penumatic vice for blocking the hose.

Product specifications could be modified without prior notice.

SPF2/MS


EXTERNAL SKIVING 2''
INTERNAL SKIVING 2''
REVOLUTIONS/MINUTE 300
PNEUMATIC INPUT MAX 7 BAR (100 psi)
WEIGHT 78 KG (172 lbs)
DIMENSIONS L x W x H 685x500x1120 mm (26.969''x19.685''x44.094'')
STANDARD VOLTAGE 400V 50HZ 3PH
MOTOR POWER 0.75 Kw (1 Hp)
SAFETY PROTECTION incl.
ELECTRIC PEDAL incl.
PNEUMATIC VICE OPTIONAL
TOOL HOLDER OPTIONAL
TOOL HOLDER STAND OPTIONAL
SPECIAL VOLTAGE OPTIONAL
