HNV brass


HNV brass
Applications

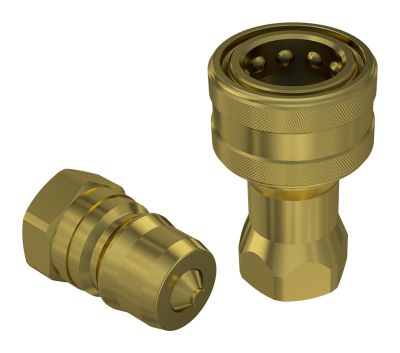

Standard couplings for industrial applications, ISO 7241-B interchange, brass versions

Standard couplings for industrial applications with brass components. Available with NBR or Viton seals. ISO 7241 part B interchange.


Items
Size (mm)  PartNumber Thread HEX1 D1 L1
 3,2 HNV 18 GAS F 5 BSPP 1/8" FEMALE 18 23 50
 3,2 HNV 18 GAS F 5V BSPP 1/8" FEMALE 18 23 50
 3,2 HNV 18 NPT F 5 NPTF 1/8" FEMALE 18 23 50
 3,2 HNV 18 NPT F 5V NPTF 1/8" FEMALE 18 23 50
 6,3 HNV 14 GAS F 5 BSPP 1/4" FEMALE 19 28 56
 6,3 HNV 14 GAS F 5V BSPP 1/4" FEMALE 19 28 56
 6,3 HNV 14 NPT F 5 NPTF 1/4" FEMALE 19 28 56
 6,3 HNV 14 NPT F 5V NPTF 1/4" FEMALE 19 28 56
 10 HNV 38 GAS F 5 BSPP 3/8" FEMALE 24 35 64
 10 HNV 38 GAS F 5V BSPP 3/8" FEMALE 24 35 64
 10 HNV 38 NPT F 5 NPTF 3/8" FEMALE 24 35 64
 10 HNV 38 NPT F 5V NPTF 3/8" FEMALE 24 34 64
 12,5 HNV 12 GAS F 5 BSPP 1/2" FEMALE 30 44 71.6
 12,5 HNV 12 GAS F 5V BSPP 1/2" FEMALE 30 44 71.6
 12,5 HNV 12 NPT F 5 NPTF 1/2" FEMALE 30 44 71.5
 12,5 HNV 12 NPT F 5V NPTF 1/2" FEMALE 30 44 71.5
 12,5 HNV 12-12SAE F   30 44 71.5
 12,5 HNV 12-12SAEF5V 3/4"-16 UNF FEMALE ORB 30 44 71.5
 20 HNV 34 GAS F 5 BSPP 3/4" FEMALE 36 52 89
 20 HNV 34 GAS F 5V BSPP 3/4" FEMALE 36 52 89
 20 HNV 34 NPT F 5 NPTF 3/4" FEMALE 36 52 89
 20 HNV 34 NPT F 5V NPTF 3/4" FEMALE 36 52 89
 25 HNV 1 GAS F 5 BSPP 1" FEMALE 41 62 106
 25 HNV 1 GAS F 5V BSPP 1" FEMALE 41 62 106
 25 HNV 1 NPT F 5 NPTF 1" FEMALE 41 62 106
 25 HNV 1 NPT F 5V NPTF 1" FEMALE 41 62 106
 37,5 HNV112 GAS F 5 BSPP 1-1/2" FEMALE 65 75 126
 37,5 HNV112 GAS F5V BSPP 1-1/2" FEMALE 65 75 126
 37,5 HNV112 NPT F 5 NPTF 1-1/2" FEMALE 65 75 126
Size (mm)  PartNumber Thread HEX1 D1 D3 L1
 3,2 HNV 18 GAS M 5 BSPP 1/8" FEMALE 18 18 10.8 31.5
 3,2 HNV 18 GAS M 5V BSPP 1/8" FEMALE 18 18 10.8 31.5
 3,2 HNV 18 NPT M 5 NPTF 1/8" FEMALE 16 18 10.8 31.5
 3,2 HNV 18 NPT M 5V NPTF 1/8" FEMALE 16 18 10.8 31.5
 6,3 HNV 14 GAS M 5 BSPP 1/4" FEMALE 19 21 14.1 35
 6,3 HNV 14 GAS M 5V BSPP 1/4" FEMALE 19 21 14.1 35
 6,3 HNV 14 NPT M 5 NPTF 1/4" FEMALE 19 21 14.1 35
 6,3 HNV 14 NPT M 5V NPTF 1/4" FEMALE 19 21 14.1 35
 6,3 HNV 14-1210 M5V M12x1 FEMALE 19 21 14.1 35
 10 HNV 38 GAS M 5 BSPP 3/8" FEMALE 24 24.5 19 39
 10 HNV 38 GAS M 5V BSPP 3/8" FEMALE 22 24.5 19 39
 10 HNV 38 NPT M 5 NPTF 3/8" FEMALE 22 24.5 19 39
 10 HNV 38 NPT M 5V NPTF 3/8" FEMALE 22 24.5 19 39
 12,5 HNV 12 GAS M 5 BSPP 1/2" FEMALE 27 30 23.5 44
 12,5 HNV 12 GAS M 5V BSPP 1/2" FEMALE 27 30 23.5 44
 12,5 HNV 12 NPT M 5 NPTF 1/2" FEMALE 27 30 23.5 44
 12,5 HNV 12 NPT M 5V NPTF 1/2" FEMALE 27 30 23.5 44
 20 HNV 34 GAS M 5 BSPP 3/4" FEMALE 34 38 31.5 55
 20 HNV 34 GAS M 5V BSPP 3/4" FEMALE 34 38 31.5 55
 20 HNV 34 NPT M 5 NPTF 3/4" FEMALE 34 38 31.5 55
 20 HNV 34 NPT M 5V NPTF 3/4" FEMALE 34 38 31.5 55
 25 HNV 1 GAS M 5 BSPP 1" FEMALE 41 45 37.8 66
 25 HNV 1 GAS M 5V BSPP 1" FEMALE 41 45 37.8 66
 25 HNV 1 NPT M 5V NPTF 1" FEMALE 41 45 37.8 66
 37,5 HNV112 GAS M 5 BSPP 1-1/2" FEMALE 65 70 44.5 123.5
 37,5 HNV112 GAS M 5V BSPP 1-1/2" FEMALE 65 70 44.5 123.5
 37,5 HNV112 NPT M 5 NPTF 1-1/2" FEMALE 65 70 44.5 123.5
